The most innovative LCD-SHD display module on the market – Suitable for all PREMASGARD ® SHD ⁄ SHD-SD ⁄ SHD 692 pressure transmitters from S+S Regeltechnik
March 30, 2025 by
PRESSURE SENSORS, PRESSURE CONTROLLERS
& PRESSURE SWITCHES
LANDEX TECHNOLOGIES LLC, Kambiz Kaveh
| No comments yet

VERSATILE APPLICATIONS AND SIMPLE OPERATION

INTEGRATED SENSOR TECHNOLOGY

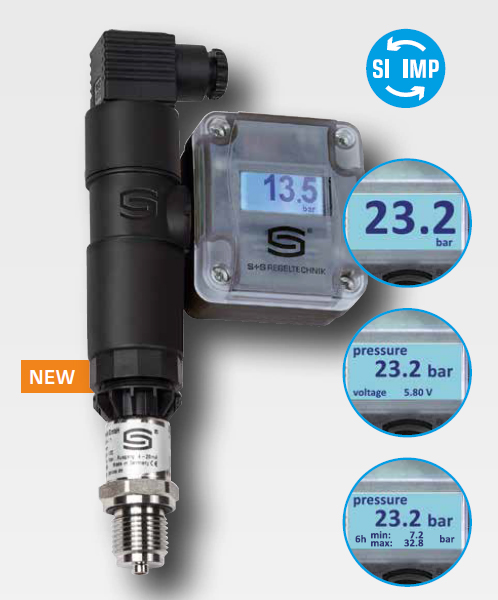

The most innovative LCD-SHD display module on the market – Suitable for all PREMASGARD® SHD ⁄ SHD-SD ⁄ SHD 692 pressure transmitters from S+S Regeltechnik, other

manufacturers on request. This user-friendly display enables the direct display of measured values at the measuring point, minimizing signal loss and reducing maintenance costs.

• Compatibility: Supports SHD, SHD-SD and SHD 692

• Flexibility: Transmitters from other manufacturers

are also compatible

• Direct on-site display: Displays the pressure directly at the measuring point

• Simple retrofitting: Form A angle connector (Hirschmann) enables uncomplicated installation

• Output signals: 0...10 V, 4...20 mA and Modbus (RS485)

• Freely definable display units: bar, kPa, psi, mWC,

atm and inWC

• Measuring ranges: 15 pre-programmed and 1 freely programmable measuring range

• Backlight: Can be switched on for 0-10 V and Modbus devices

The display can be mechanically rotated and tilted, whereby the display content can be rotated in 90° steps.

In addition to the current pressure, voltage and min ⁄ max values can also be displayed.


Further information on the compact LCD-SHD device series can be found on the following link .

More Info.​​
