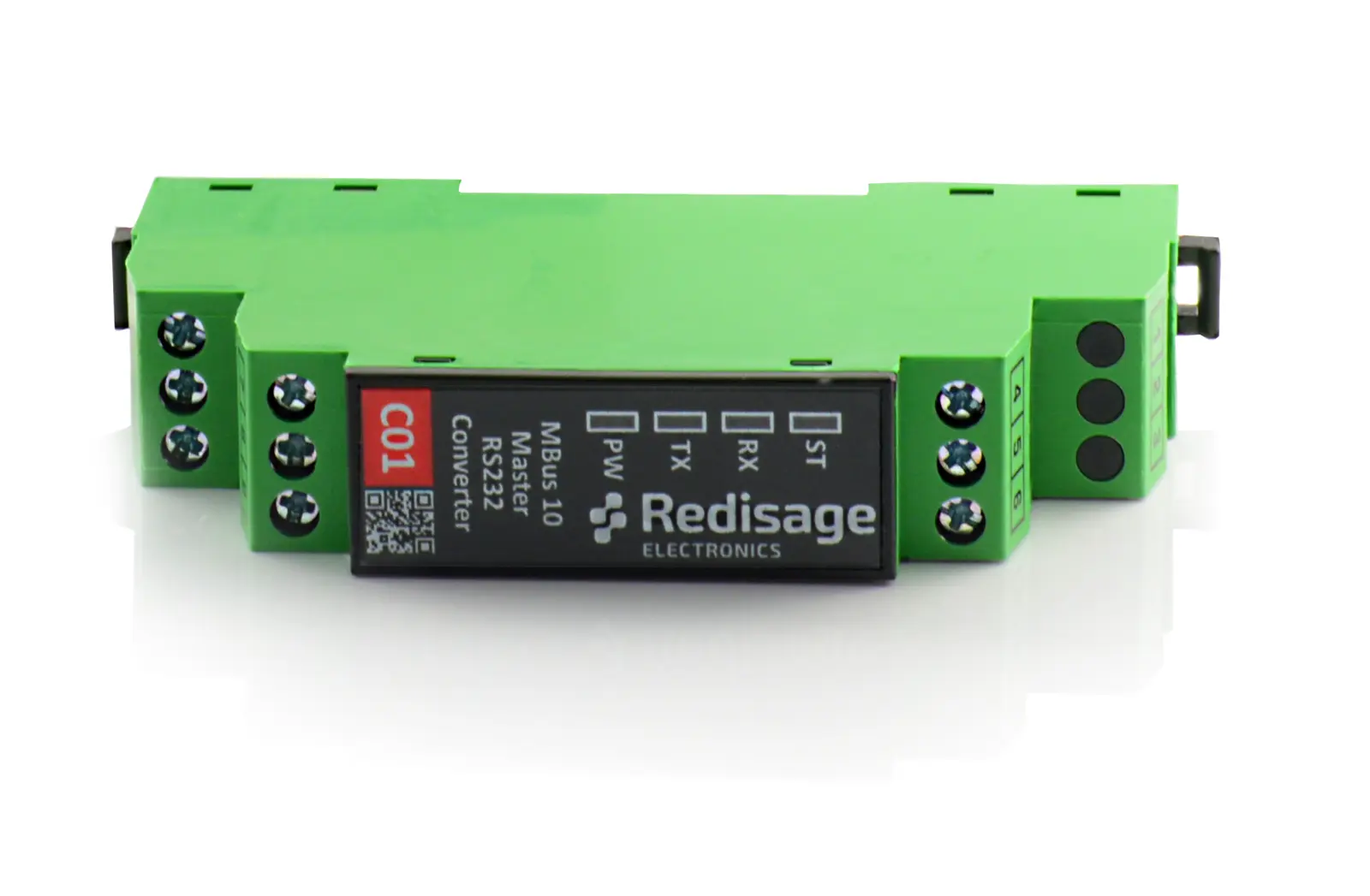

C01 MBus 10 to Passive RS232 Converter 1kV DC Isolation

https://www.landextech.com/web/image/product.template/177/image_1920?unique=79883bb

Redisage Electronics

RS232 to MBus Master Isolated Converter 10 MBus Slaves Passive RS232 Side 1kV DC Isolation  Model  C01

  • 1 x Passive RS232

  • Power Voltage 24 V/AC

  • RS232 1 kV/DC

  • Number of M-Bus Slave devices up to 10

Item no. RE-C01
Made In Europe

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

  • Port Type
  • Number Of Ports
  • Brand Names

This combination does not exist.

Price (AED)
Redisage Electronics

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

Redisage's C02 passive MBus 10 to RS485 converter is a reliable device for enabling communication between M-Bus systems and RS232 serial interfaces. This converter supports up to 10 simultaneously connected slave devices and provides 1kV DC isolation to ensure data transmission in industrial environments. It operates with a power supply range of 12-30 VDC or 24 VAC, and offers key features such as ESD protection and LED indicators for transmission, reception, and power status.


  • Serial ports RS232 and RS485
  • Up to 10 simultaneously connected slave
  • devices
  • ESD protection for the RS232/485 data line
  • 3000 VDC isolation protection
  • Power supply: +12 to +30 VDC or 24 VAC
  • Transmission speed up to 9600 bps
  • Tx, Rx and power LED indicators
  • RS485 embedded termination 120 ohm
  • Operating temperatures: -40°C to +75°C
  • DIN-rail mounting
  • Compact size - single module format (1M)
  • Dimensions: 90x56.4x17.5 mm
  • 3 years warranty
  • Customization of OEM is welcomed

C01 MBus 10 to Passive RS232 Converter 1kV DC Isolation, UAE

Product Reference Site Link

Redisage PN

C01

C02

C03

C04
Converter ports Serial 1 x passive RS232 1 x active RS232 1 x RS485 1 x active RS232/RS485
M-Bus 1 x M-Bus master with up to 10 x slaves

Power

Voltage

12-30 VDC / 24 VAC
Power < 1 W
Frame ground connection yes

Serial

interface

 RS232 TxD, RxD, GND
RS485 A, B
M-Bus MBus+, MBus -

3000 VDC isolation side

N/A

RS232

RS485

 RS232/RS485
1000 VDC isolation side RS232 N/A

Baud rate

up to 9600 bps
LED indicators communication Tx, Rx, power
RS232 OK N/A
RS485 termination 120 ohm manually enabled
Connector RS232 3-pin terminal block max. 2.5 mm2 wire
RS485 3-pin terminal block max. 2.5 mm2 wire
Power 3-pin terminal block max. 2.5 mm2 wire
M-Bus 3-pin terminal block max. 2.5 mm2 wire

Transmission

distance

RS485

max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps

(Belden 9841 2P twisted-pair cable, if different cables are used,

the transmission distance may change)
RS232 max. 15 m at 115.2 kbps
M-Bus see: M-Bus max. transmission distance
Mounting and enclosure DIN rail, plastic PA - UL 94 V0, black/green
Temperatures -40°C to +75°C operating and storage
Humidity 10 - 90% RH, non-condensing

ESD protection

±4 kV contact discharge / ±8 kV air discharge
Certification  CE, RoHS, EMC, LVD
Norms

61000-6-2 - Immunity standard for industrial environments

61000-6-4 - Emission standard for industrial environments


Catalogue page EN
