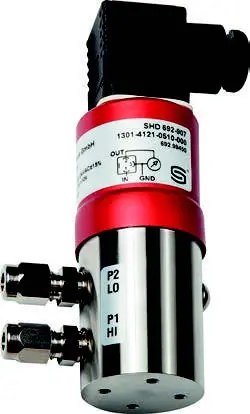

The pressure sensor ⁄ differential pressure sensor PREMASGARD® SHD-692 is used for pressure measurement in gaseous and liquid media. It converts the measurand into standard signals of 0-10 V or 4...20 mA. Process connection is 2 x G ⅛ " - 27 NPT internal thread.

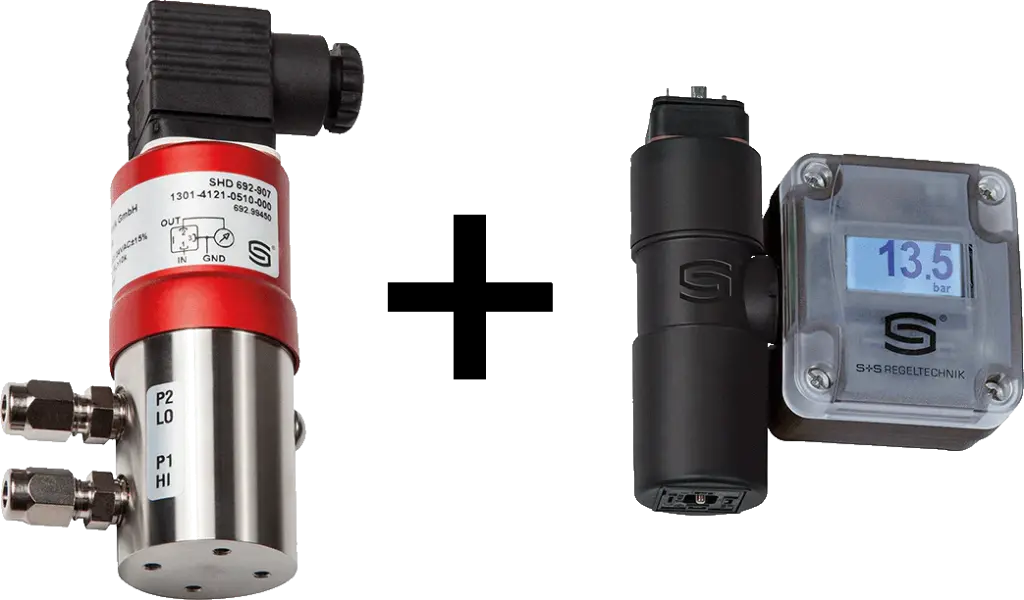

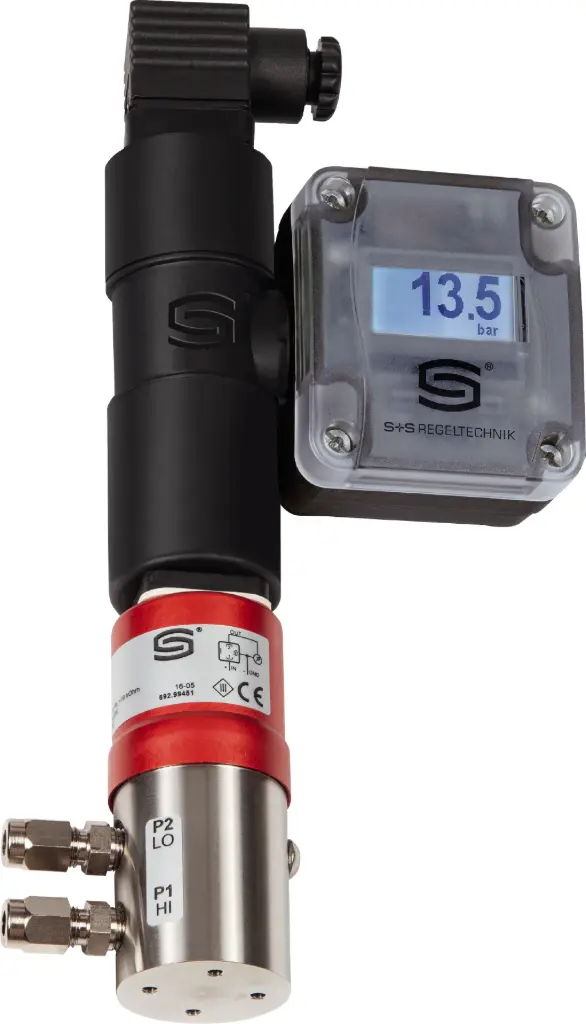

SHD -692 differential pressure transmitters are used in piping and hydraulic systems, in mechanical and plant engineering as well as in building automation. Not applicable for ammonia and freon! The device variant SHD 692-xx-LCD is supplied with the display module LCD-SHD.

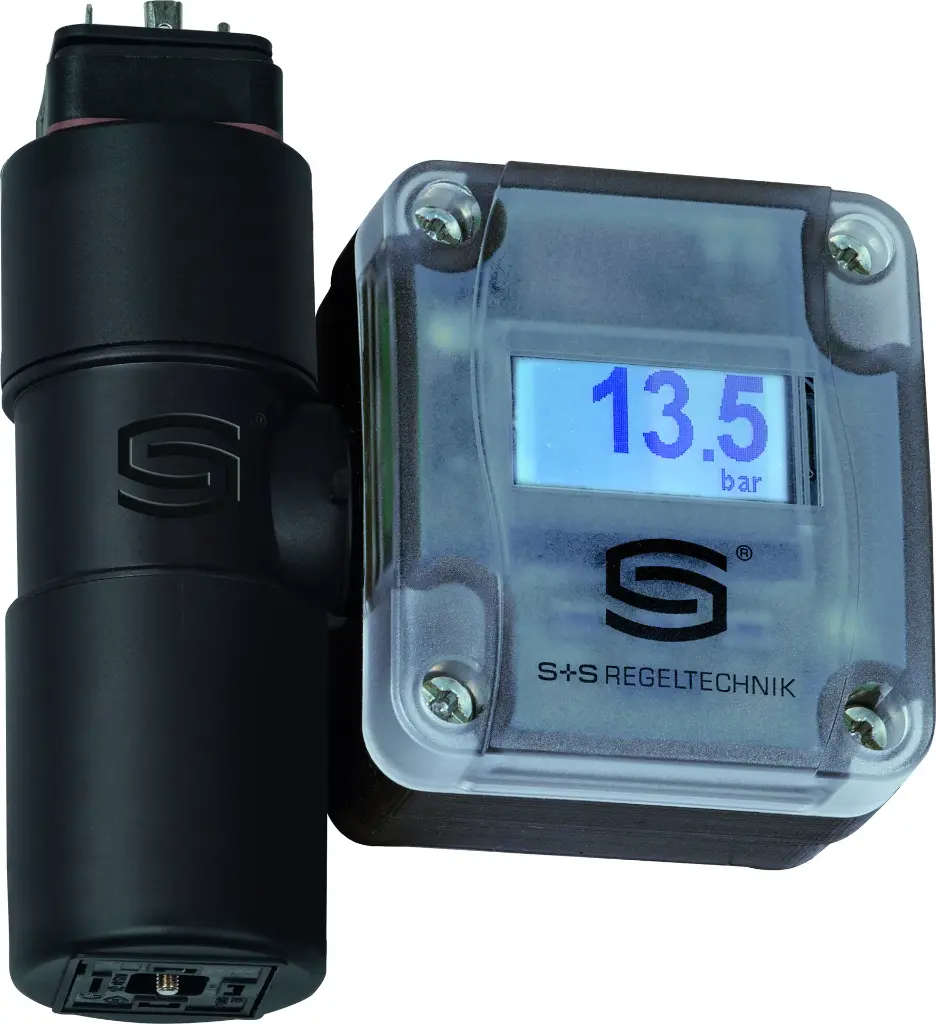

The installation takes place below the angle plug. The module can be mechanically rotated and tilted, and the display content can be rotated in 90° increments to achieve the ideal reading position. The display types and pressure units are configured directly on the display (menu-controlled via buttons).
