  2. Planet Industrial LoRaWAN Gateway with 5-Port 10/100/1000TModel LCG-300-EU

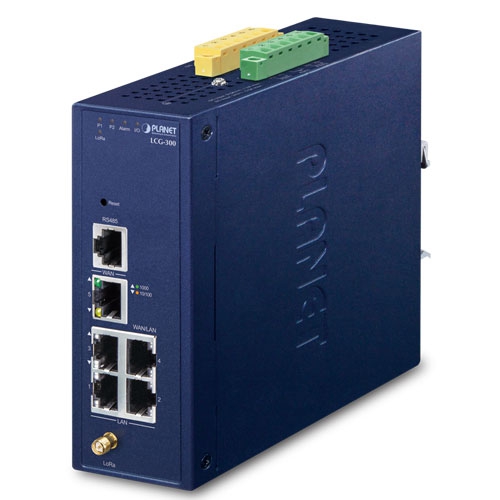

Planet Industrial LoRaWAN Gateway with 5-Port 10/100/1000TModel LCG-300-EU

https://www.landextech.com/web/image/product.template/84/image_1920?unique=f0bc48c
(0 review)

Connect to LoRa Network with Excellent LoRaWAN Gateway

PLANET LCG-300 is an industrial-grade LoRaWAN gateway with reliable connectivity for IoT deployments. With LoRaWAN protocol support, it helps to bridge LoRa wireless network to an IP network.

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Available for Backorder

This combination does not exist.

Contact Us
PLANET

Terms and Conditions
Standard Manufacture Warranty.
Shipping: 1-2 Business Days For Available Items.
10-14 Business Days For Not Stock Items.

LoRa Communication Solution


IP30 Industrial IoT LoRaWAN Gateway with 5-Port 10/100/1000T - EU868 MHz. (Supports The Things Network & AWS network server, 2 DI/DO, Modbus TCP, -40~75 degrees C, Dual-WAN Failover and Load Balancing, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), SPI Firewall, DoS Attack Prevention, Cyber Security, IPv6, SNMP, PLANET Easy-DDNS, RADIUS, MQTT)

PLANET LCG-300 LoRa gateway supports LoRa and LoRaWAN standard. Transceivers configured with LoRa devices like CO2 and water sensors are embedded into end-nodes, or sensor devices that capture and transmit data to gateways over distances through wireless network. The LCG-300 can send information via Ethernet to the Network Server, which is responsible for network management functions that distribute information to each application accordingly.




Ordering Information

LCG-300-EU |  Industrial LoRaWAN Gateway with 5-Port 10/100/1000T (2 DI/DO, -40~75 degrees C, EU868 Sub 1G)



Product Reference Site Link


Hardware Specifications
Copper Ports5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Serial InterfaceRJ45 serial port
LoRa Antenna2 dBi external antennas with SMA connectors for LoRa
DI & DO Interfaces2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.
ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
EnclosureIP30 metal case
InstallationDIN-rail, desktop, wall-mounting
LED IndicatorsSystem:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)
LoRa (Green)
Ethernet Interfaces (Ports 1-4 and WAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Dimensions (W x D x H)50 x 135 x 135 mm
Weight0.9 kg
Power Requirements – DC9~54V DC, 1.3A Max.
Power Consumption8 watts/ 27.3 BTU
LoRaWAN
Frequency BandLCG-300-EU:863~870MHz (IN865/EU868/RU864)
LCG-300-US: 902~928MHz (US915/AU915/KR920/AS923)
Receiving Sensitivity-142.5dBm
Output Power27dBm Max.

Advanced Functions

VPN IPSec /Remote Server (Net-to-Net, Host-to-Net)

GRE

PPTP Server

L2TP Server

SSL Server/Client (Open VPN)VPN TunnelsMax. 60VPN ThroughputMax. 60MbpsEncryption MethodsDES, 3DES, AES or AES-128/192/256 encryptingAuthentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithmManagementBasic Management InterfacesWeb browser

SNMP v1, v2c

PLANET Smart Discovery utility/UNI-NMS supportedSecure Management InterfacesSSHv2, TLSv1.2, SNMP v3System LogSystem Event LogOthersSetup wizard

Dashboard

System status/service

Statistics

Connection status

Auto reboot

DiagnosticsStandards ConformanceRegulatory ComplianceCE, FCCEnvironmentOperatingTemperature: -40 ~ 75 degrees C

Relative humidity: 5 ~ 90% (non-condensing)StorageTemperature: -40 ~ 85 degrees C

Relative humidity: 5 ~ 90% (non-condensing)

Catalogue page EN
