Planet Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T Model LCG-300-NR

https://www.landextech.com/web/image/product.template/85/image_1920?unique=b8327ad

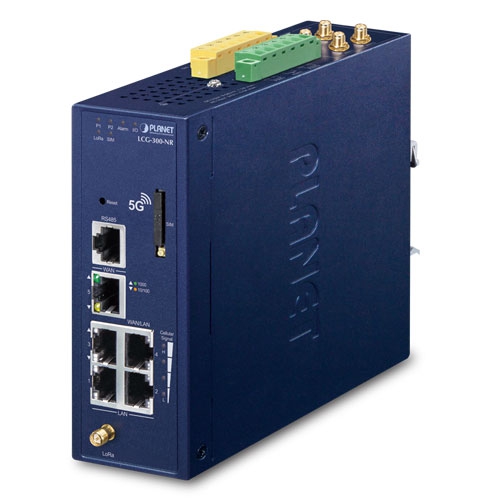

Planet Industrial LoRaWAN + 5G NR Cellular Gateway Model LCG-300-NR


Connect to 5G NR and LoRa Network with Excellent LoRaWAN Cellular Gateway

PLANET LCG-300-NR is an industrial-grade 5G NR Cellular LoRaWAN Gateway with reliable connectivity for IoT deployments. It is able to provide ultra-fast broadband access with 5G cellular network

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

  • Brand Names

This combination does not exist.

Contact Us
PLANET TECHNOLOGY

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

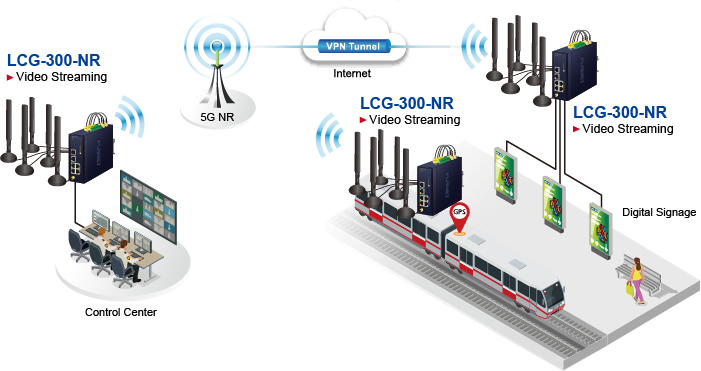

LoRa Communication Solution

Connect to 5G NR and LoRa Network with Excellent LoRaWAN Cellular Gateway


IP30 Industrial IoT LoRaWAN + 5G NR Cellular Gateway  with 5-Port 10/100/1000T - EU868 MHz. (Supports The Things Network & AWS network server, Sub-6 5G NR Global Band, compatible with 4G LTE, 1 SIM Card Slot, Modbus RS485 bridge LoRaWAN, Modbus TCP, 2 DI/DO, -40~75 degrees C, Dual-WAN Failover and Load Balancing, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), SPI Firewall, Cyber Security, IPv6, SNMP, PLANET Easy-DDNS, RADIUS, MQTT)


PLANET LCG-300-NR is an industrial-grade 5G NR Cellular LoRaWAN Gateway with reliable connectivity for IoT deployments. It is able to provide ultra-fast broadband access with 5G cellular network


Ordering Information

LCG-300-NR-EU |   Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T (2 DI/DO, -40~75 degrees C, EU868 Sub 1G)


Product Reference Site Link


Hardware Specifications
Ethernet5 10/100/1000BASE-T RJ45 Ethernet ports including
　3 LAN ports (Ports 1 to 3)
　1 LAN/WAN port (Port 4)
　1 WAN port (Port 5)
Serial InterfaceRJ45 type RS485 for Modbus TCP
Cellular Antenna5 dBi external antennas with SMA connectors for 5G-NR
SIM Interface1 SIM card slot with mini SIM card tray
LoRa Antenna2 dBi external antennas with SMA connectors for LoRa
DI & DO Interfaces2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.
ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
EnclosureIP30 metal case
InstallationDIN-rail, desktop, wall-mounting
LED IndicatorsSystem:
　P1, P2, LoRa, SIM (Green)
　Alarm, I/O (Red)

Interfaces (Ports 1-4 and WAN Port):
　1000 LNK/ACT (Green)
　10/100 LNK/ACT (Amber

cellular signal
　4 levels (Green)
Dimensions (W x D x H)50 x 135 x 135 mm
Weight924g
Power Requirements – DC9~54V DC, 1.5A Max.
Power ConsumptionMax. 3.9 watts/13.2 BTU (No Loading)
Max. 11.6 watts/39.5 BTU (Full loading)
LoRaWAN
Frequency BandLCG-300-NR-EU:863~870MHz (IN865/EU868/RU864)
LCG-300-NR-US: 902~928MHz (US915/AU915/KR920/AS923)
Receiving Sensitivity-142.5dBm
Output Power27dBm Max.
Multi Band Supports
5G SUB6 BANDSNSA：
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/ n66/n70/n71/n75/n76/n77/n78/n79
SA：
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/n66/n70/n71/n75/n76/n77/n78/n79
LTE BANDSFDD：B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/ B29/B30/B32/B66/B71
TDD：B34/B38/B39/B40/B41/B42/B43/B48
LAA：B46
UMTS BANDSFDD ：B1/B2/B8/B4/B5/B19
　　　MAX DL SPEED: DL3.4Gbps; UL 550 Mbps
　　　GNSS: GPS/ GLONASS/ BDS/ Galileo/ QZSS
TDD ：MAX DL SPEED DL 2.4 Gbps; UL 900 Mbps
WCDMAB1/B2/B3/B4/B5/B8
GNSSGPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS
Data Transmission Throughput2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+
Security Service
Firewall SecurityCybersecurity
SSL (HTTPS) Inspection
Stateful Packet Inspection (SPI)
Blocks DoS/DDoS attack
NATPort forwarding
DMZ Host
UPnP
Content FilteringMAC filtering
IP filtering
Web filtering
Bandwidth ManagementOutbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
Networking
Operation ModeRouting mode
Routing ProtocolStatic Route, Dynamic Route (RIP), OSPF
VLAN802.1q Tag-based, Port-based, Multi-VLAN
MulticastIGMP Proxy
NAT ThroughputMax. 900Mbps
Outbound Load BalancingSupported algorithms: Weight
ProtocolIPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,
Key FeaturesHA (High Availability)
Captive Portal
RADIUS Server/Client
AP Control
Advanced Functions
VPN FunctionIPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN TunnelsMax. 60
VPN ThroughputMax. 108Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management InterfacesSSHv2, TLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
