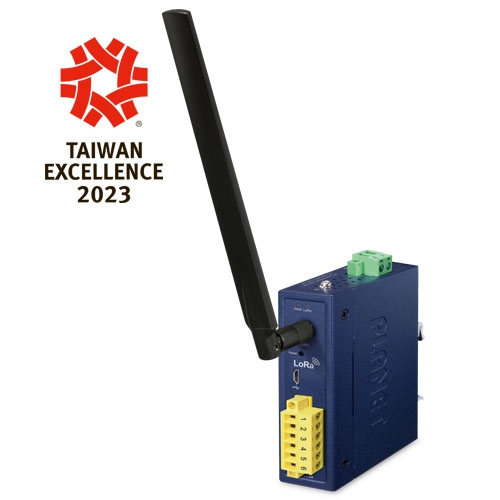

Planet Industrial IP30 LoRa Node Controller (Modbus RS232, RS485, EU868/US915 Sub 1G) Model LN1130

https://www.landextech.com/web/image/product.template/88/image_1920?unique=bc711e5
(0 review)

Industrial IP30 LoRa Node Controller - RS232/RS485 (EU868/US915 Sub 1G, supports OTAA/ABP Class A/B/C, 9~48VDC/24VAC, -40~75 degrees C, Micro-USB Configuration Port, DIN-rail or wall mounting, Modbus RS485 bridge LoRaWAN)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Available for Backorder

This combination does not exist.

Contact Us
PLANET

Terms and Conditions
Standard Manufacture Warranty.
Shipping: 1-2 Business Days For Available Items.
10-14 Business Days For Not Stock Items.

LoRa Communication Solution

The LN1130 is a versatile device that supports both LoRa and LoRaWAN standards. It comes equipped with one RS232 (serial communication) interface and one RS485 (Modbus protocol) serial interface. It is ideal for monitoring and controlling embedded devices such as temperature sensors, access control systems, and security systems.

  • 1 x micro USB port console
  • 1 x RS232 serial interface
  • 1 x RS485 serial interface
  • LED indicators for the LoRa and Power status
  • 9 ~ 48V DC and 24V AC input voltage range
  • Supports LoRaWAN protocol



Ordering Information

LN1130 |    Industrial IP30 LoRa Node Controller (Modbus RS232, RS485, EU868/US915 Sub 1G)


Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
Antenna Connector1 × 50 Ω SMA Connectors (Center Pin: SMA Female)
FrequencyIN865, EU868, RU864, US915, AU915, KR920, AS923
Work ModeOTAA/ABP Class A/B/C
Data Interfaces
Interface Type6-pin removable terminal block
Serial Port
RS232Pin1
Pin2
Pin3		TxD
Rxd
GND
RS485Pin4
Pin5
Pin6		D-(A)
D+(B)
GND
Baud Rate600~256000 bps (RS232)/600~256000 bps (RS485)
ProtocolTransparent (RS232), Modbus RTU (RS485)
Others
Configuration Port1 × Micro USB
LED Indicators1 × PWR, 1 × LoRa
Built-in SensorTemperature sensor
Physical Characteristics
Power Connector2-pin removable terminal block
Power Supply9 ~ 48V DC/ 24V AC
Ingress ProtectionIP30
Operating Temperature-40°C to +75°C
Relative Humidity5% to 95% (non-condensing)
Dimensions33 x 70 x 104 mm
Weight218 g
InstallationDIN-rail or wall mounting
Standards Conformance
Regulatory ComplianceCE, FCC
