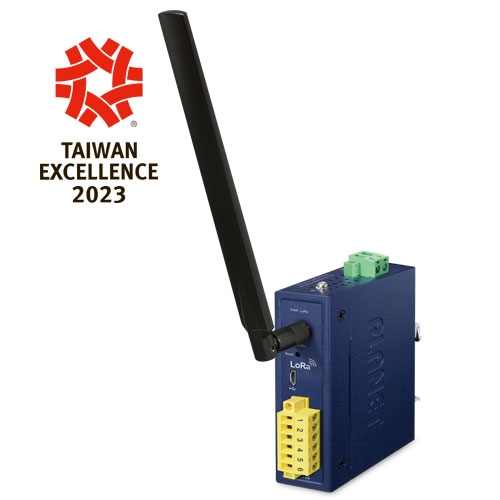

Planet Industrial IP30 LoRa Node Controller (2 DI, 2 DO, EU868/US915 Sub 1G) Model LN1140

https://www.landextech.com/web/image/product.template/89/image_1920?unique=5b7bf96
(0 review)

Industrial IP30 LoRa Node Controller - 2 Digital Input + 2 Digital Output (EU868/US915 Sub 1G, supports OTAA/ABP Class A/B/C, 9~48VDC/24VAC, -40~75 degrees C, Micro-USB Configuration Port, DIN-rail or wall mounting)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
PLANET TECHNOLOGY

Terms and Conditions
- Standard Manufacture Warranty.
-  Shipping for in-stock items: 1–2 business days.
- Delivery for out-of-stock items: 5–7 business days from payment confirmation.

Share

LoRa Communication Solution

The LN1140 is a versatile device that supports both LoRa and LoRaWAN standards. It comes equipped with one RS232 (serial communication) interface and one RS485 (Modbus protocol) serial interface. It is ideal for monitoring and controlling embedded devices such as temperature sensors, access control systems, and security systems.

    • 1 x micro-USB port console
    • 2 x digital input interface
    • 2 x digital output interface
    • LED indicators for the LoRa and Power status
    • 9 ~ 48V DC and 24V AC input voltage range
    • Supports LoRaWAN protocol.


Ordering Information

LN1140 |    Industrial IP30 LoRa Node Controller (2 DI, 2 DO, EU868/US915 Sub 1G)


Product Reference Site Link ​


Wireless Transmission
TechnologyLoRaWAN
Antenna Connector1 × 50 Ω SMA Connectors (Center Pin: SMA Female)
FrequencyIN865, EU868, RU864, US915, AU915, KR920, AS923
Work ModeOTAA/ABP Class A/B/C
Data Interfaces
Interface Type6-pin removable terminal block
IO Ports
Digital InputPin1(DI 0)
Pin2(DI 1)		Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Digital OutputPin3(DO 0)
Pin4(DO 1)		Input Load to 24V DC, 10mA max.
Open collector to 24V DC, 100mA (max.)
GNDPin 5, 6
Others
Configuration Port1 × Micro USB
LED Indicators1 × PWR, 1 × LoRa
Built-in SensorTemperature sensor
Physical Characteristics
Power Connector2-pin removable terminal block
Power Supply9 ~ 48V DC, 24V AC
Ingress ProtectionIP30
Operating Temperature-40°C to +75°C
Relative Humidity5% to 95% (non-condensing)
Dimensions33 x 70 x 104 mm
Weight218 g
InstallationDIN-rail or wall mounting
Standards Conformance
Regulatory ComplianceCE, FCC

Catalogue page EN  ​
