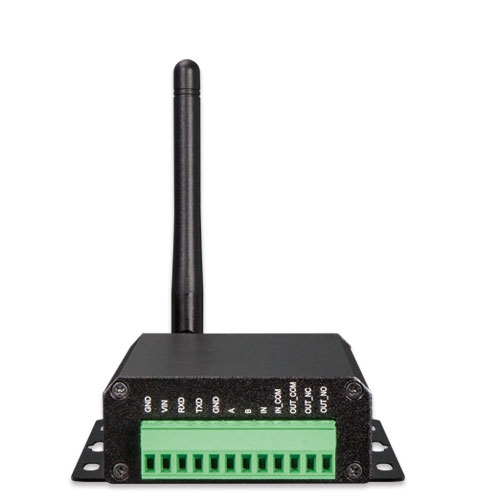

Planet Indoor IP30 LoRa Node Controller Model LN1152-868

https://www.landextech.com/web/image/product.template/90/image_1920?unique=2a34a98
(0 review)

Indoor IP30 LoRa Node Controller – 868 MHz. (RS232, RS485, Digital Input and Digital Output)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Available for Backorder

This combination does not exist.

Contact Us
PLANET

Terms and Conditions
Standard Manufacture Warranty.
Shipping: 1-2 Business Days For Available Items.
10-14 Business Days For Not Stock Items.

Build a Smarter, Connected World

PLANET LN1152 is an indoor LoRa node controller used for data acquisition from multiple sensors. It contains different I/O interfaces including analog inputs, digital inputs, relay outputs and serial ports to simplify the deployment and replacement of LoRaWAN networks. Besides, the LN1152 can trigger multiple conditions and actions without a network. With its industrial design and IP30 metal case, the LN1152 is widely used in indoor applications like smart industries, building automation, etc.

Highlights

  • Easy to connect with multiple wired sensors through GPIO/RS232/RS485 interfaces
  • Ultra-wide-distance transmission up to 10km with line of sight
  • Triggers multiple conditions and actions
  • Embedded watchdog for work stability
  • Industrial metal case design with wide operating temperature range
  • Compliant with standard LoRaWAN gateways and network servers



Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
Antenna Connector× 50 Ω SMA Connectors (Center Pin: SMA Female)
FrequencyLN1152-868: IN865, EU868, RU864
LN1152-915: US915, AU915, KR920, AS923
Tx Power16dBm(868)/20dBm(915)
Sensitivity-147dBm @300bps
Work ModeOTAA/ABP Class C
Data Interfaces
Interface Type3.5mm Terminal Block
IODigital Input
Opto-isolated Digital Inputs, 3-24VDC (pulse counter support)

Digital Output
SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V
Serial PortPorts
RS232/RS485

Baud Rate
4800~115200bps (RS232)/1200~115200 bps(RS485)

Protocol
Transparent (RS232), Modbus RTU (RS485)
Others
Configuration Port1 × Micro USB
LED Indicators1 × System, 1 × ACT
Built-inWatchdog, Timer
Physical Characteristics
Power Connector3.5mm Terminal Block
Power Supply5-24 VDC
Ingress ProtectionIP30
Operating Temperature-40°C to +70°C
Relative Humidity0% to 95% (non-condensing)
Dimensions79 × 60 × 24 mm
InstallationDesktop, Wall mounting
Standards Conformance
Regulatory ComplianceCE, FCC

Catalogue page EN
