LREC9204CT

https://www.landextech.com/web/image/product.template/133/image_1920?unique=5b7bf96
(0 review)

PCIe x1 1G Single-port Desktop Adapter (Intel I210 Based)
Key Features
- Integrate power management technologies such as energy-saving Ethernet and DMA merging to improve energy efficiency;
-Supports commercial and industrial temperature applications;
- Full wake support;
-Adopt miniaturized design without loss of performance.

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

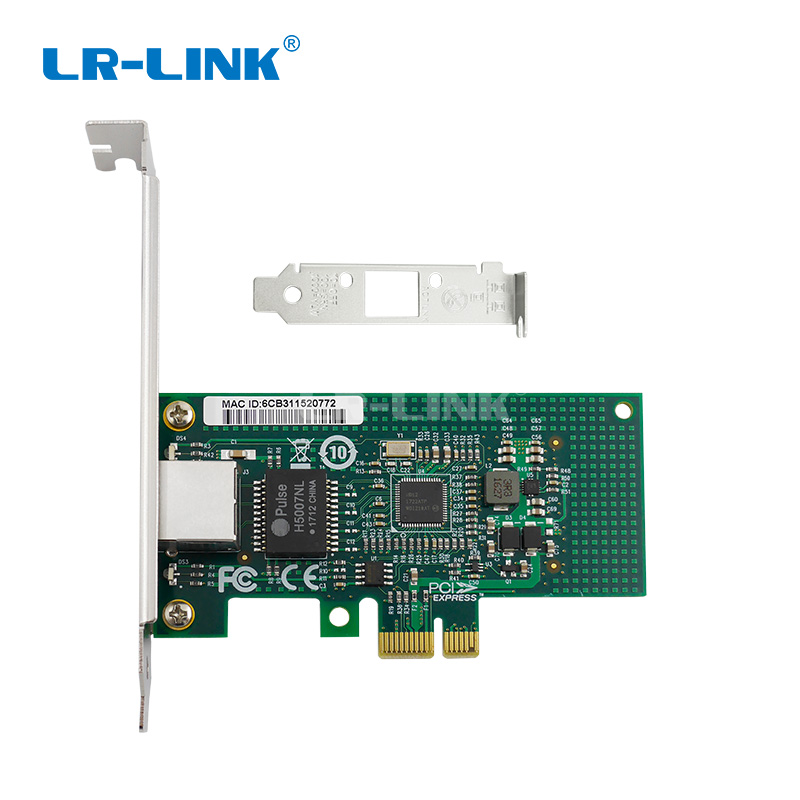

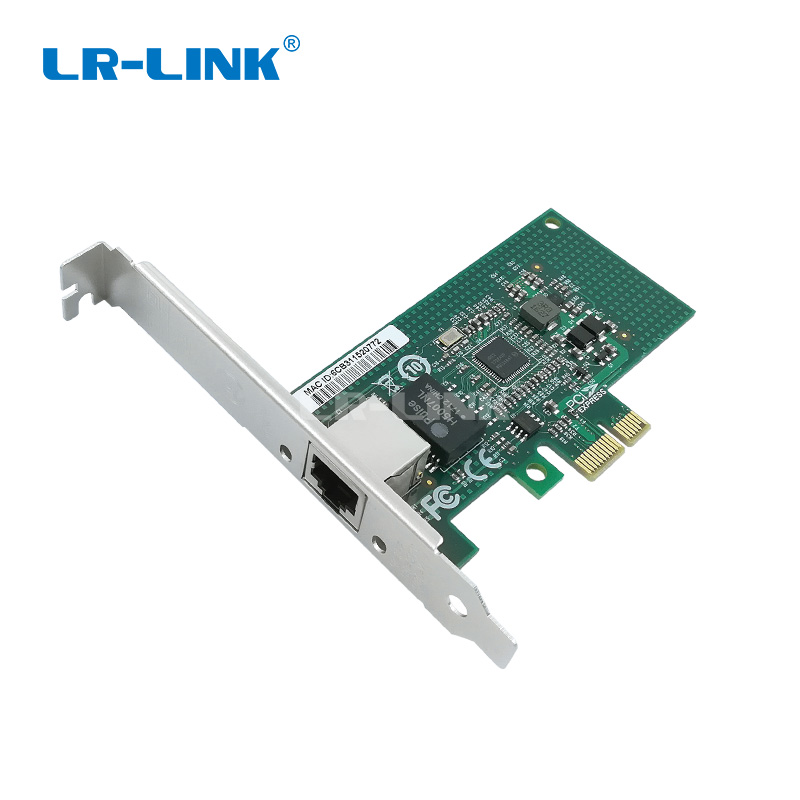

LREC9204CT is a PCIe x1 1G Single-port Desktop Adapter developed by Linkreal Co., Ltd. based on the Intel I210 main control solution. This Gigabit adapter adopts a miniaturized design without reducing the various performance indicators of the network card.

It adopts Ethernet power management technologies such as energy-saving Ethernet and DMA merging, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. By combining parallel and pipeline logic architecture in together to effectively manage packets with latency.

It achieves high-performance network data transmission on the machine bus architecture and is compatible with Ethernet and Fast Ethernet, thus greatly reducing customer deployment and training costs. Users can easily and quickly migrate the network to Gigabit Ethernet 10/100/1000Mbps. The link rate adapts to the links on the network.


Product Reference Site Link


Model

LREC9204CT

Controller

Intel I210

Cable medium

Copper

Cable Type

CAT5

50m:1Gbps    100m:1Gbps     150m:1Gbps

CAT6

50m:1Gbps    100m:1Gbps     150m:1Gbps

CAT6E

50m:1Gbps    100m:1Gbps     150m:100Mbps

CAT7

50m:1Gbps    100m:1Gbps

Baffle Configuration

Full height & half height

Bus Type

PCIe v2.1(2.5GT/s) x1 , compatible with x8 , x16

Data Rate

10/100/1000Mbps

Connector

1*RJ45

ESD

Air discharge

±15KV

Contact discharge

±8KV

Lightning surge test

±2kV common mode

Power Consumption(mini)

0.363W

Power Consumption(max)

0.834W

System Support

* Windows 7/8/ 8.1/10/11

* Windows Server 2008/2012/2016

* Windows Server 2019/2022

* RHEL/Centos7.6/7.9/8.2/8.3

* Deepin 15.11/20/ 20.6/ 20.9

* Ubuntu 18.04.5/20.04.1

* Ubuntu 22.04.2/22.04.3

* SUSE 12.5/15.4

* FreeBSD 12.2/13.2

* ZTE New Fulcrum 3.2.2/ 5.0.5

* Galaxy Unicorn v10

* NeoKylin 7.6

* Zhongke Fangde desktop operating system 4.0

* Zhongke Fangde server operating system

* Tongxin UOS 20

* Emind OS

* OpenKylin 0.7.5

* VMware ESXi 6.5/ 6.7/7.0

* Mikrotik

* iKuai router

PXE

Yes

WoL

Yes

Jumbo frame

Yes

SR-IOV

No

1588 PTP

Yes

UEFI

Yes

Standards Compliant

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-T Ethernet

IEEE 802.3z     IEEE 802.3      IEEE 802.1Q VLANs     IEEE 802.3x

IEEE 802.3az - Energy Efficient Ethernet (EEE)
