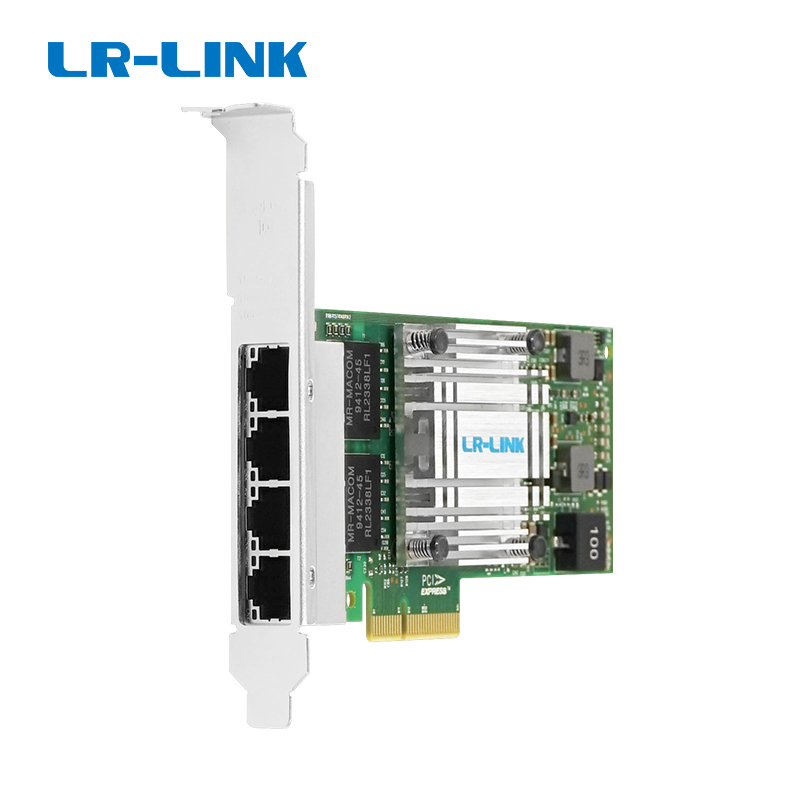

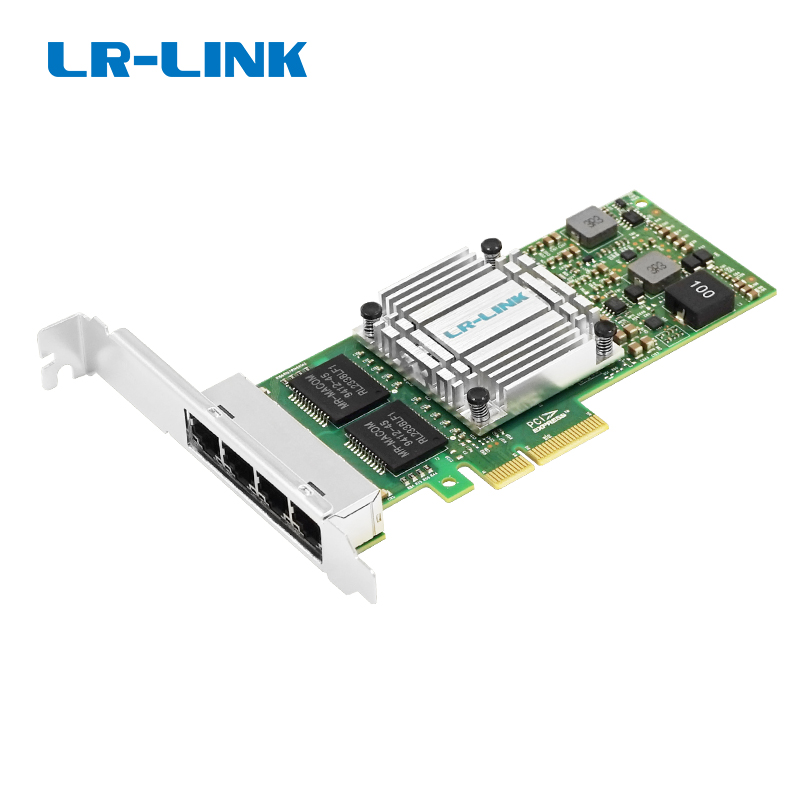

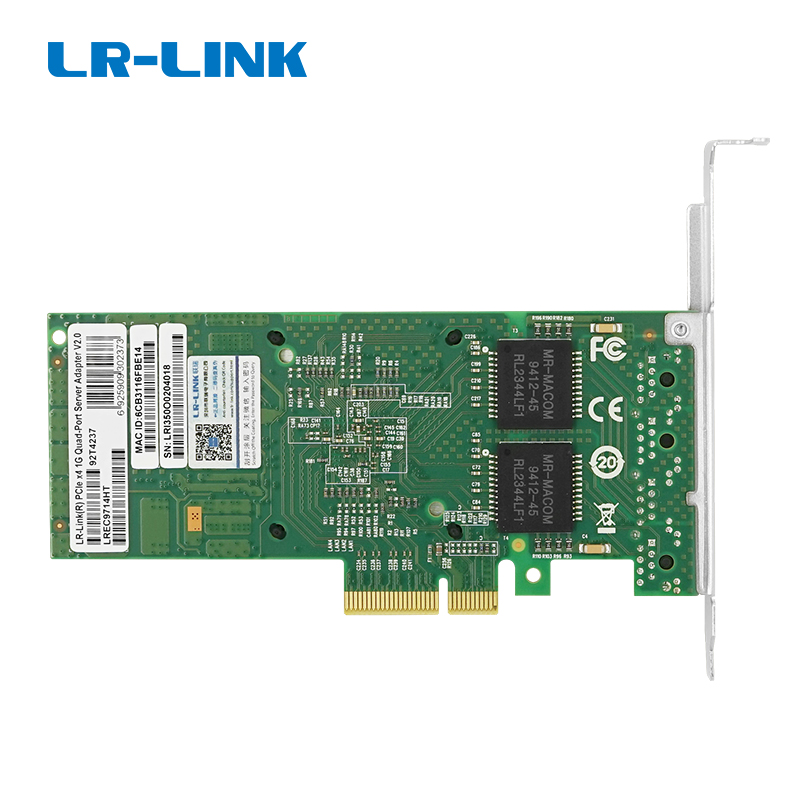

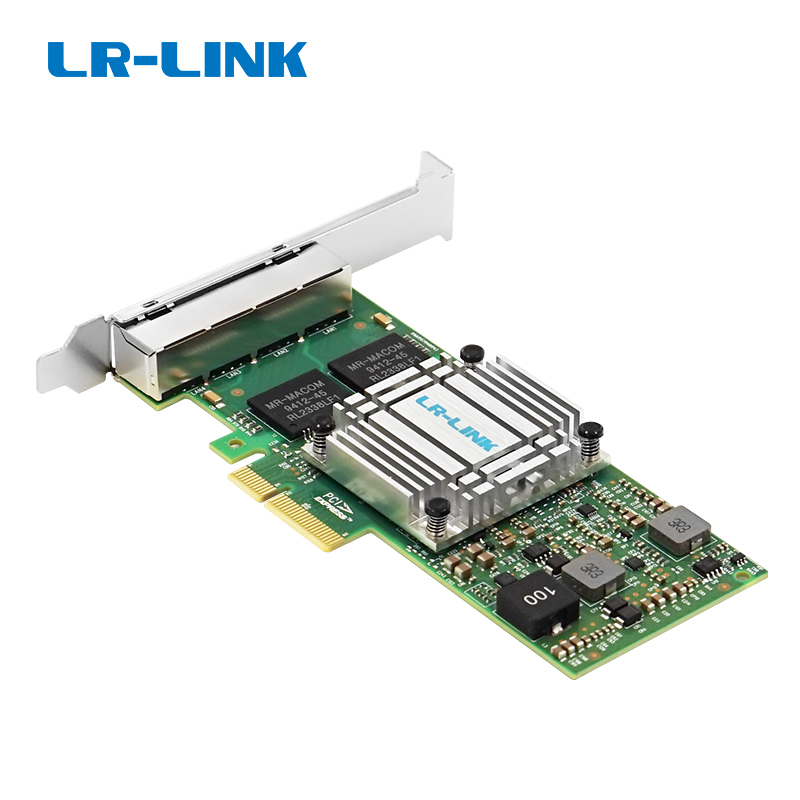

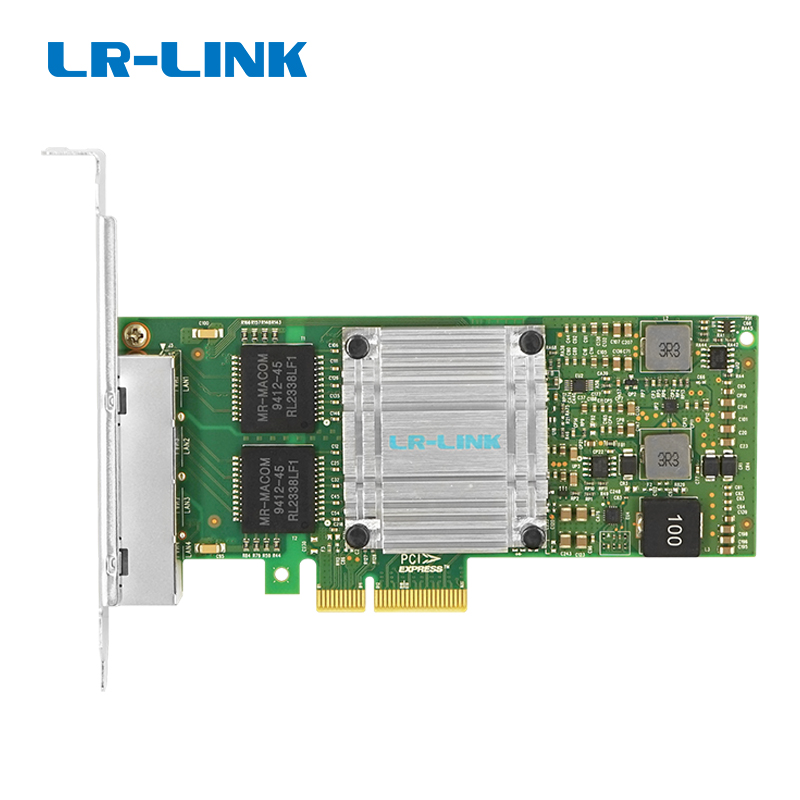

LREC9714HT

LREC9714HT is a PCIe x4 quad-port 1G Server Adapter developed by Linkreal CO.,LTD. based on Intel I350, which is compatible with PCIe x8 and x16 slots. The adapter is designed for servers and server clusters and other network applications. It can realize fault tolerance and redundancy by bundling multiple ports into a group to expand network bandwidth and guarantee network performance, and can automatically detect and realize real-time routing of communications from the faulty ports to other members of the same group for uninterrupted high-performance communications.

The LREC9714HT features integrated hardware acceleration to perform TCP/UDP/IP checksum offload and TCP segmentation tasks.Developed on the Intel I350 quad-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, the LREC9714HT utilizes a compact interface architecture to better utilize server space, allowing four network ports to operate simultaneously in full-duplex mode for high-performance network communications when on a Gigabit Ethernet connection. It can extend the bandwidth through link aggregation and save PCI Express channel resources at the same time without taking up the bus bandwidth. Supports PCI SIG Single-Root I/O virtualization and sharing specification (SR-IOV).
