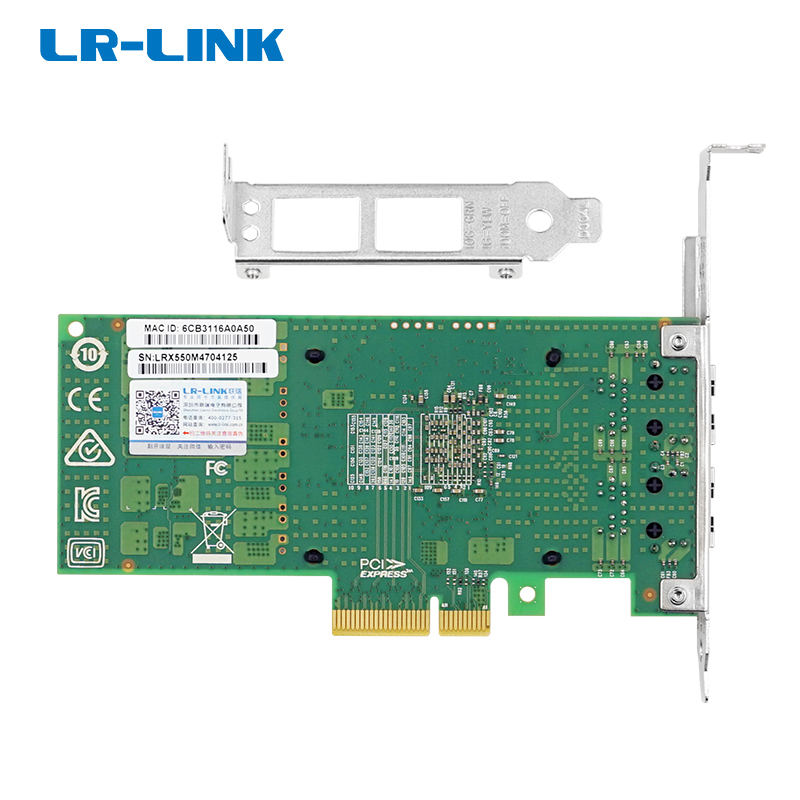

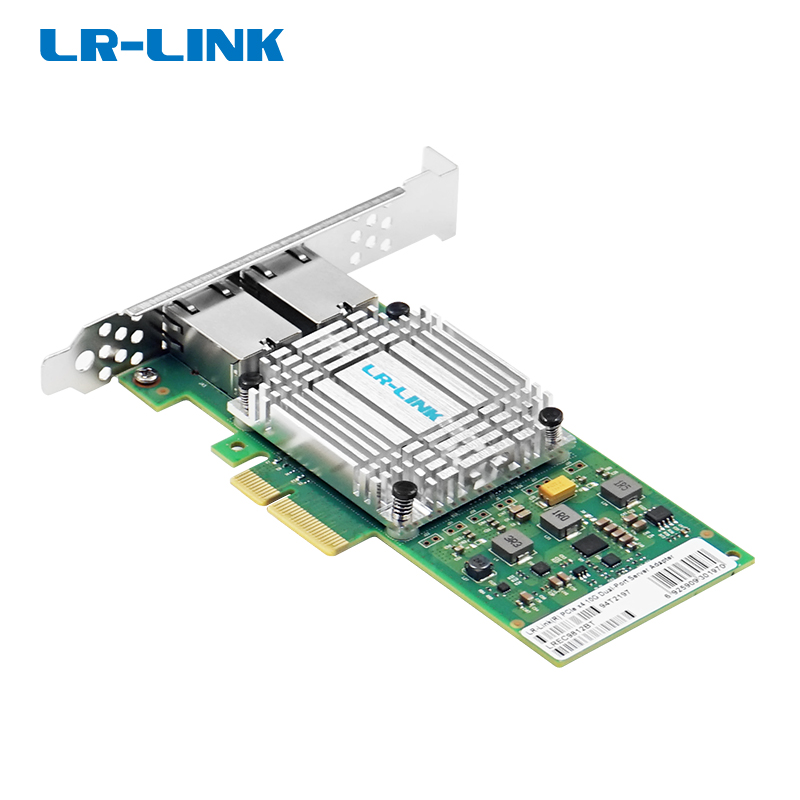

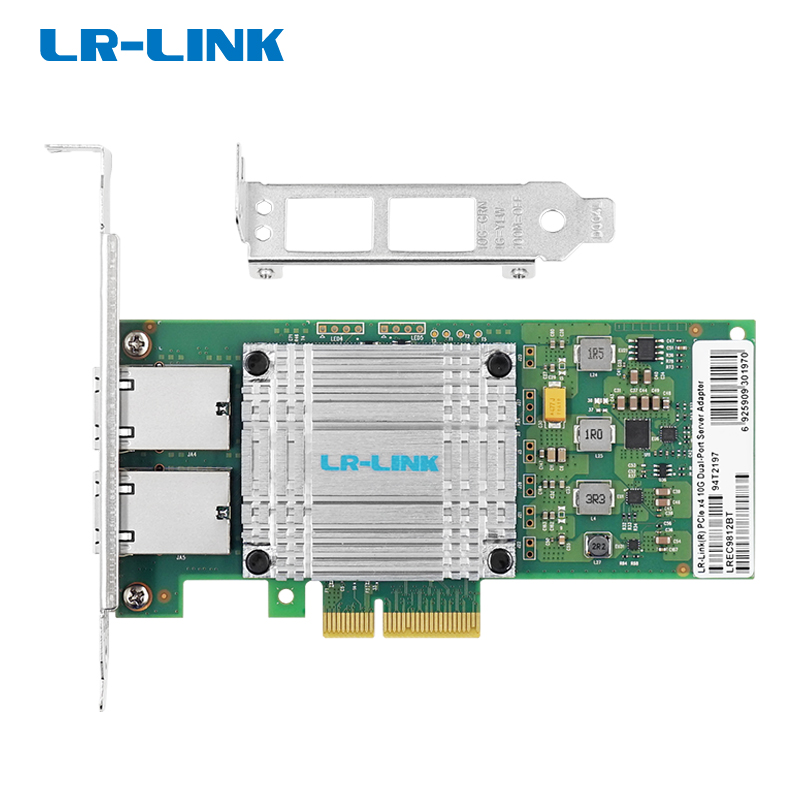

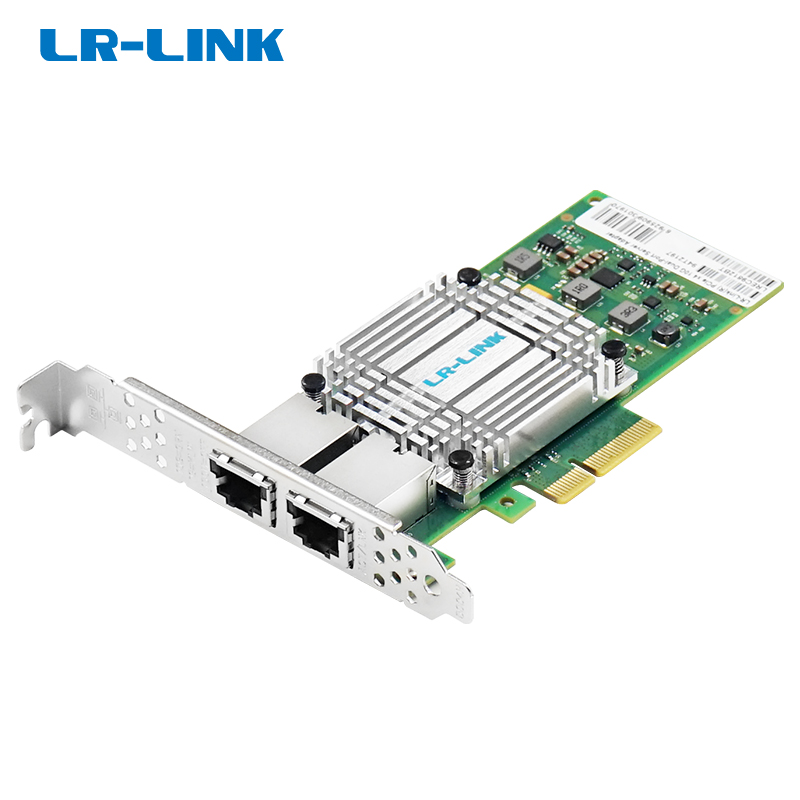

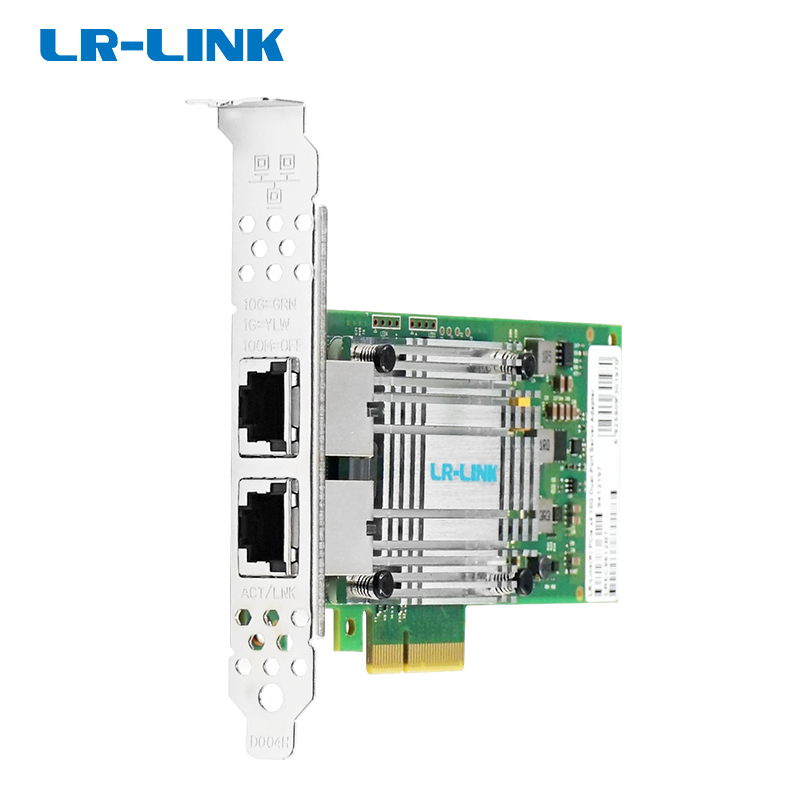

LREC9812BT

Controller

Intel Ethernet Controller X550AT2

Baffle Height

Full height and half height

Power Consumption

Typical  Power11.2W;  Maximum Power13.0W

System Support

Windows ServerX 2012 R2;

Windows Server 2012 R2 Core;

Windows Server 2012;

Windows Server 2012 Core;

Windows Server 2008 R2;

Windows Server 2008 R2 Core;

LinuxX Stable Kernel version 2.6.32/3x;

LinuxX RHEL 6.5 and RHEL 7.0;

LinuxX SLES 11 SP3 and SLES 12;

FreeBSDX 9 and FreeBSDX 10;

UEFIX 2.1; UEFIX 2.3;

VMware ESXi 5.1(Limited Functionality);

VMware ESXi 5.5

Ports

Dual 10GBASE-T RJ45 Port

Bus type

PCIe v3.0 (8.0GT/s) (2.0 and 1.1 compatible)

Bus Width

x4 lane PCle operable in x8 and x16 slots

Data rate supported per port

10 GbE/1 GbE/100MbE(Only linux), 10GbE/1 GbE/100MbE

LED Indicators

Link（green/orange bright）and ACTIVITY( green flashing)

Link Rate(green=10Gbps；orange=1Gbps/100Mbps)

Virtual Machine Device Queues (VMDq)

Offloads data sorting from the hypervisor to silicon, improving data throughput and CPU usage

QoS feature for Tx data by providing round-robin servicing and preventing head-of- line blocking

Sorting based on MAC addresses and VLAN tags

Support for PCI-SIG SR-IOV

Up to 64 VFs per port

IEEE 802.1Q VLAN Support with VLAN Tag

Ability to create multiple VLAN segments

VXLAN Stateless Offloads

A framework for overlaying virtualized layer 2 networks over layer 3 networks. VXLAN enables users to create a logical network for VMs across different networks

NVGRE Stateless Offloads

Network Virtualization using Generic Routing Encapsulation. The encapsulation of an Ethernet Layer 2 Frame in IP that enables the creation of virtualized Layer 2 subnets that can span physical Layer 3 IP networks

Intel® Flow Director

Yes

MSI-X

Yes

FPP - 64 VFs Per Port

Yes

Tx/Rx IP SCTP TCP and UDP Checksum Offloading (lPv4IPv6) Capabilities

Yes

Tx TCP Segmentation Offload

Yes

SNMP and RMON

Yes

Protocol Support

IEEE 802.1QX VLANs

IEEE 802.3 2005X flow control support

compatible 10 GbE and 1 GbE Ethernet/ 802.3ap (KX/KX4) Specification

compatible the 10 GbE 802.3ap (KR) Specification

compatible 1000BASE-BX Specification

PXE

Yes

WoL

No

Jumbo frames

15.5 KB

Ethernet power management

Yes

Storage

iSCSI, NFS, FCoE, SMB

Operating temperature

0 °C to 55 °C (32 °F to 131 °F)

Storage temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Storage humidity

Maximum: 90% non-condensing relative humidity at 35 °C

Air Flow

Minimum of 1 50 LFM required

Certifications

FCC，CE，RoHS

Size（LxWxH）mm

137X69X1.6 mm
