LRES1056PT

https://www.landextech.com/web/image/product.template/121/image_1920?unique=5b7bf96
(0 review)

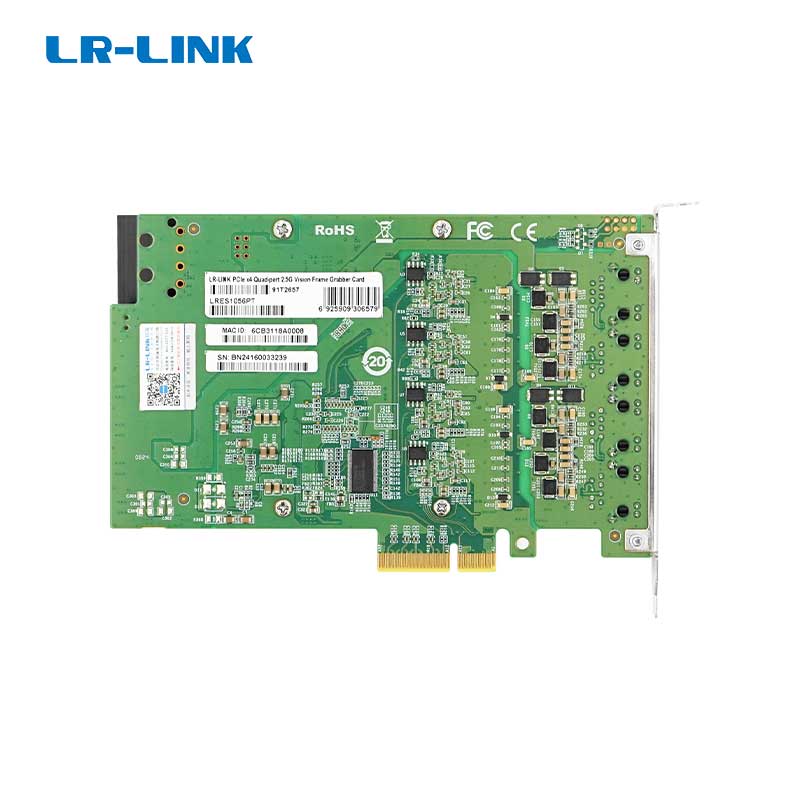

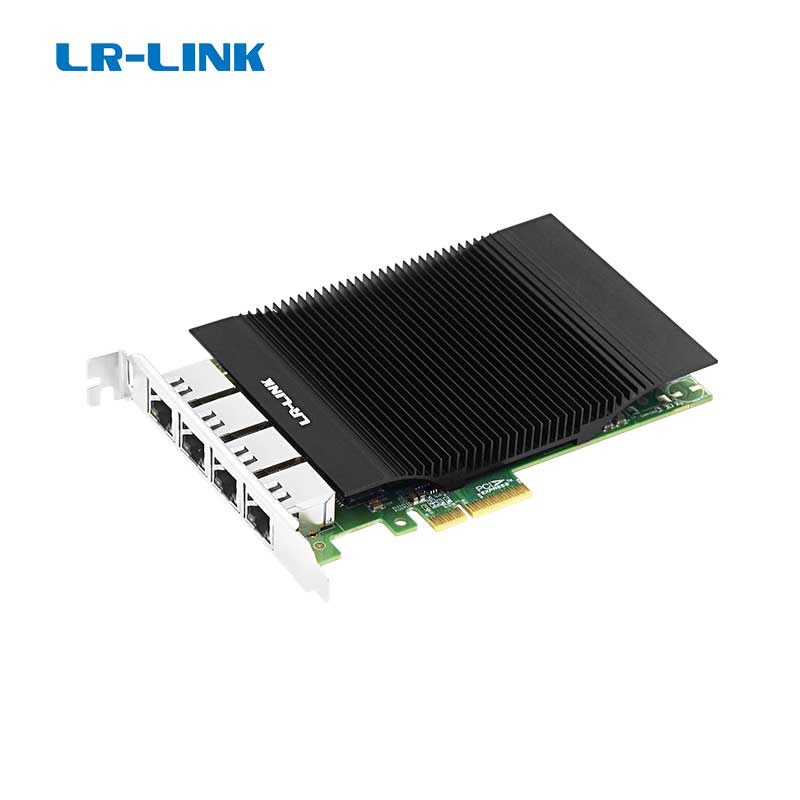

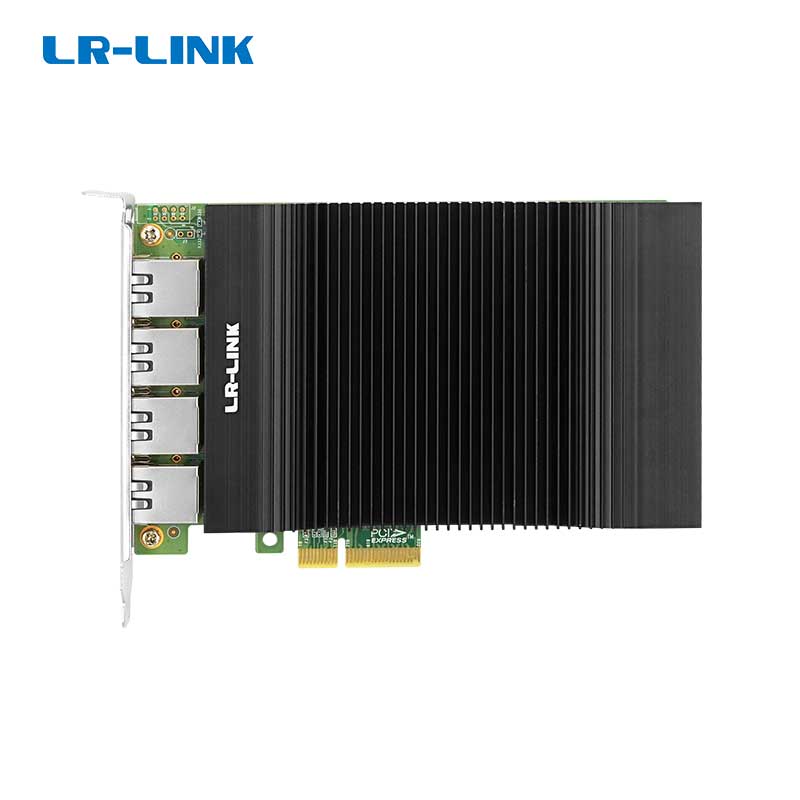

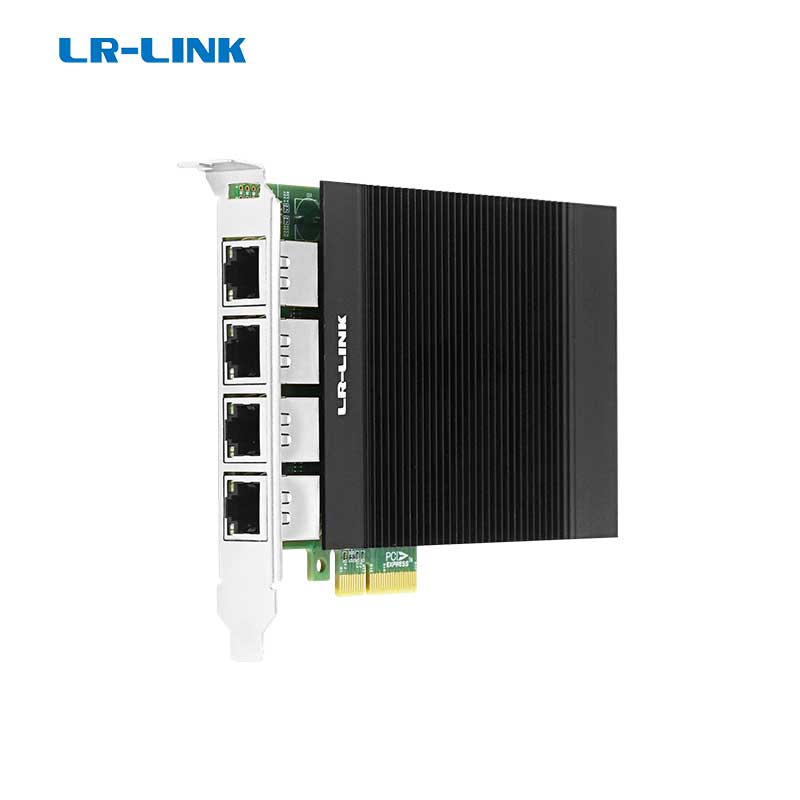

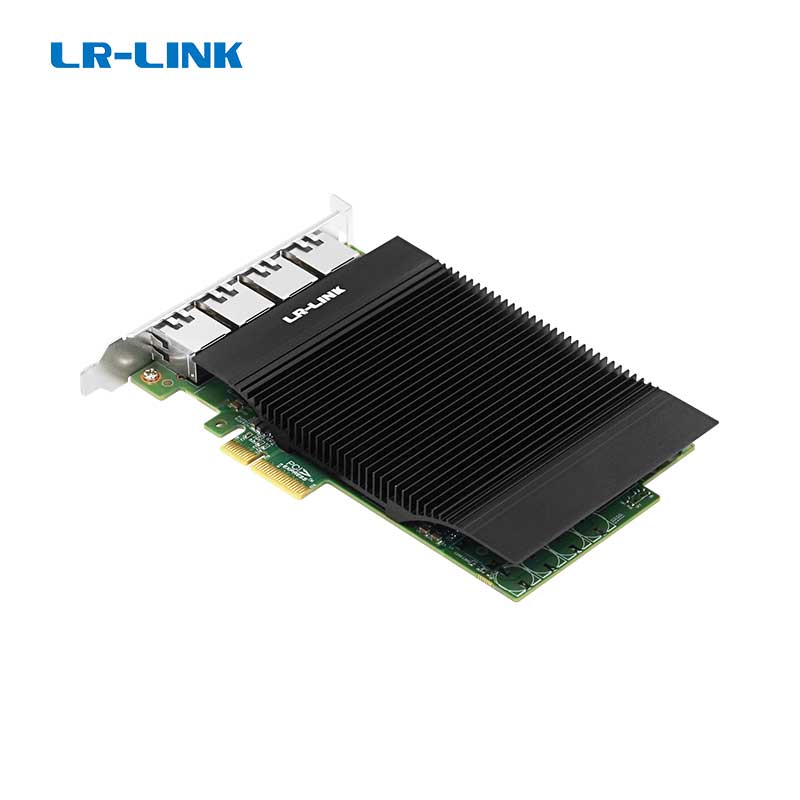

PCIe x4 Quad-port 2.5G Vision Frame Grabber Card(Intel I226 Based)
Key Features
- Supports rate adaptation of 2.5Gbps, 1Gbps, 100Mbps and 10Mbps;
- Supports PCIe 2.0 (5GT/s);
- Transmission distance up to 100 meters;
- Supports packets up to 9.2KB (jumbo frames)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
LR-LINK

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

LRES1056PT is a PCIe x4 quad-port 2.5G vision frame grabber card independently developed by Linkreal Co., Ltd. based on the Intel I226 main controller solution. It is also compatible with PCIe x8 and x16 slots. It supports data transmission speeds up to 2.5Gbps and is equipped with four electrical ports, which can connect multiple devices at the same time to improve the efficiency of data collection.. In addition, LRES1056PT has outstanding performance in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be widely used in industrial visual inspection, intelligent monitoring systems, medical imaging diagnosis and other fields. Provide users with high-quality image data collection solutions.


Product Reference Site Link


Model

LRES1056PT

Controller

Intel I226

Cable medium

Copper

Fiber Type

CAT-5

50M（100Mbps）；100M（100Mbps）；150M（100Mbps）

CAT-6

50M（100Mbps）；100M（100Mbps）；150M（100Mbps）

CAT-6e

50M（2.5Gbps）；100M（2.5Gbps）

CAT-7

50M（2.5Gbps）；100M（2.5Gbps）

Bracket Height

Full Height

Power (min)

5.88W

Power (max)

9.36 W

Bus Interface

PCIe 2.0 (5.0GT/s) x1; structure x4, compatible with x8 x16

Data rate per port

10Mbps;100Mbps;1Gbps;2.5Gbps

Connector

4*2.5G RJ45

Power Supply

PCIe

ESD

Contact discharge

±8kV

Lightning surge test

±2kV common mode

Operating System Support

* Windows 11

* Deepin 20/20.6/20.9

* RHEL/CentOS 8.2

* Ubuntu 20.04.1/22.04.2

* SUSE 12.5/15.4

* FreeBSD 13.2

* Mikrotik

* iKuai router

PXE

No

UEFI

Yes

MDI/MDI-X

Yes

WoL

Yes

Jumbo Frames

Yes

SR-IOV

No

1588 PTP

Yes

Jumbo Frame(max)

9.2KB

RSS

4

Protocol Support

IEEE 802.3x ; IEEE 802.3x

2.5Gbps

Connection Status

Green Link + Green Link

Transfer status

Green Blink + Green Link

1Gbps

Connection Status

Green Link + Orange Link

Transfer status

Green Blink + Orange Link

100Mbps/10Mbps

Connection Status

Green Link

Transfer status

Green Blink

Operating Temperature

0℃ to 55℃ (32 ℉ to 131 ℉)

Storage Temperature

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCC, CE, RoHS

PCB size(unit:mm)

156.7*104.37*1.6

Package size (unit: mm)

222*147*28
