LRNV9347L-4I

https://www.landextech.com/web/image/product.template/156/image_1920?unique=53d38fc
(0 review)

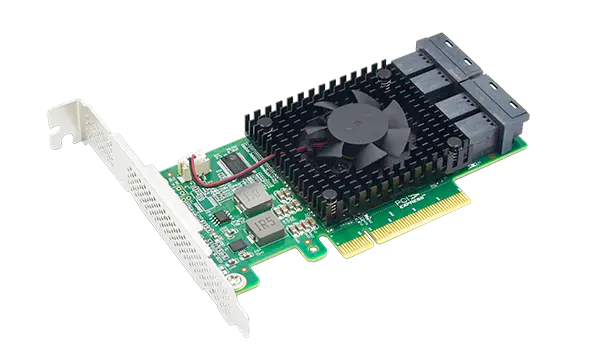

LRNV9347L-4I PCI Express 3.0 x8 to 4 x U.2 (SFF-8643) NVMe Switch Adapter

PCIe 3.0 x8 | SFF-8643 | Quad-port | PLX 8747

Key Features

  • Product Model:LRNV9347L-4I
  • Product Name:4 Port PCIe 3.0 x 8 to U.2 NVMe Switch Adapter
  • Chipset：PLX 8747
  • Interface Type：4*SFF-8643 Connectors
  • Support Equipment：4*NVMe SSD or PCIe adapter card
  • Host Bus Type：PCIe 3.0 x 8



0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
LR-LINK

Terms and Conditions
- Standard Manufacture Warranty.
-  Shipping for in-stock items: 1–2 business days.
- Delivery for out-of-stock items: 5–7 business days from payment confirmation.

Share

Product Description

  LRNV9347 NVMe Adapter is PCI Express x8 Gen3 PCIe switch Card. It expands the maximum storage of the 4 U.2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.

4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF

Functional Characteristics

·         Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).

·         Compliant with PCI Power Management Spec, r1.2.

·         Microsoft Vista Compliant.

·         Supports Access Control Services.

·         High Performance. Non-blocking switch fabric, Full line rate on all ports.

·         Quality of Service.

·         Reliability, Availability, Serviceability.

·         Supports PCIe NVME ports.


Applications

Suitable for NVMe SSD support PCI Express, it can get the maximum bandwidth and transfer rate while the 4 U.2 NVMe SSD running at the same time.



Product Reference Site Link

HARDWARE

Model

LRNV9347L-4I

Number of Device

4 Internal

I/O Controller

PLX PEX8747

Host Bus Type

PCI Express 3.0

Compatible Device

4 NVMe U.2 SSD

Interface

4*SFF-8643

CONNECTORS(S)

Device Connectors

4*NVMe SSD

Host Connectors

PCI Express x8

OPERATING SYSTEM

OS supported list

Windows, Red Hat, Linux, Suse, VMware, MAC OSX, FreeBSD

ENVIRONMENTAL

Humidity

15% – 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Product Dimension

130mm x68.9mm

Product Weight

153.5g

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 - PCI Express x8 to U.2(SFF-8643) NVMe Switch Adapter

1 - full-height bracket (installed)

1-  low-profile bracket
