LRNV9F12

https://www.landextech.com/web/image/product.template/154/image_1920?unique=a623d15
(0 review)

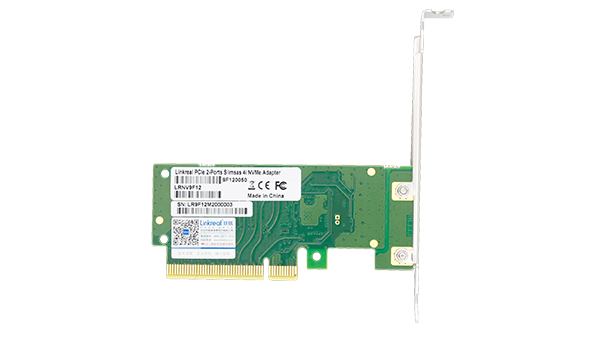

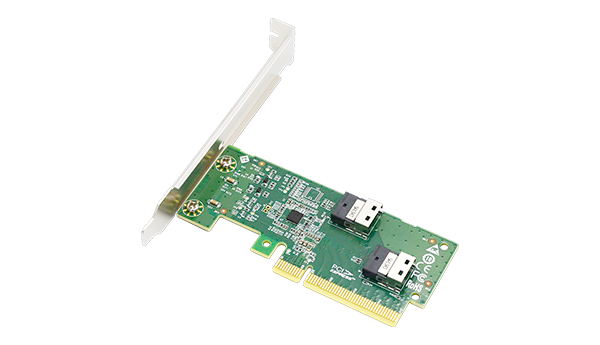

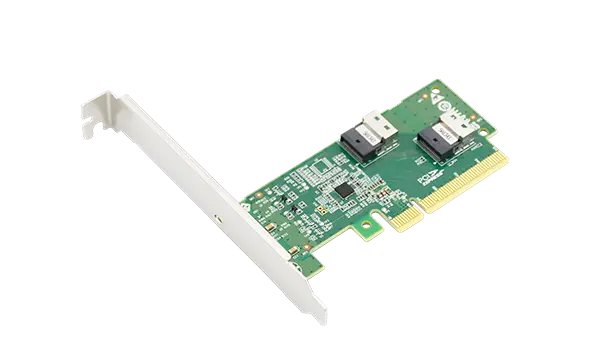

LRNV9F12 PCI Express 4.0 x8 to Two Slim SAS SFF-8654 4i Adapter

Key Features

  • Product Model:LRNV9F12
  • Product Name: PCI Express 4.0 x8 to Two SlimSAS SFF-8654 4i Adapter
  • Interface Type:2*Slim SAS SFF-8654 4i
  • Support Equipment: Up to 2* PCIe 4.0 U.2 NVMe SSD
  • Host Bus Type: PCIe 4.0 x 8
  • Ps. Motherboards and BIOS Support Bifurcation required


0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
LR-LINK

Terms and Conditions
- Standard Manufacture Warranty.
-  Shipping for in-stock items: 1–2 business days.
- Delivery for out-of-stock items: 5–7 business days from payment confirmation.

Share

Product Description

LRNV9F12 is a high performance, low dielectric loss factor interface conversion card designed for PCIe 4.0 U.2 SSD. It connects NVMe SSD or PCIe connectors via SlimSAS connector (SFF-8654). The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.

The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x8 link width to bifurcate two x4 link width or four x2 link width for NVMe SSD, Otherwise this card can only support PCIe x8 link width.

LR-LINK PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter: LRNV9F24

Features

Directly connected to PCIe 4.0 U.2 NVMe SSD by SFF-8654 4i to SFF-8639 cable

Support bifurcated in quad x2data link width configuration(CPU and BIOS both support)

Support bifurcated in two x4 data link width configuration (CPU and BIOS both support)

Build in SlimSAS(SFF-8654) 4i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity

PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.


Product Reference Site Link

HARDWARE

Model

LRNV9F12

Number of Device

2 internal

Bus Type

PCI Express

Compatible Device Type

U.2 (PCIe_NVMe SSD, SFF-8639)

Interface

Slim SAS SFF-8654 4i

CONNECTOR(S)

Device Connector

2*SFF-8654 4i

Host Bus Type

PCI Express x8

Optional Accessories

Optional Cables

Slim SAS 4i to SFF-8639 Cable

Slim SAS 4i to Slim SAS 4i Cable

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

102.20mm x 45mm

Product Weight

73g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

4.07 oz [115.5 g]

WHAT'S IN THE BOX

Included in Package

1 - PCI Express 4.0 x8 to Two SlimSAS SFF-8654 4i Adapter

1 - Low-profile bracket

1 - Full-height bracket (installed)

2- Bracket screws
