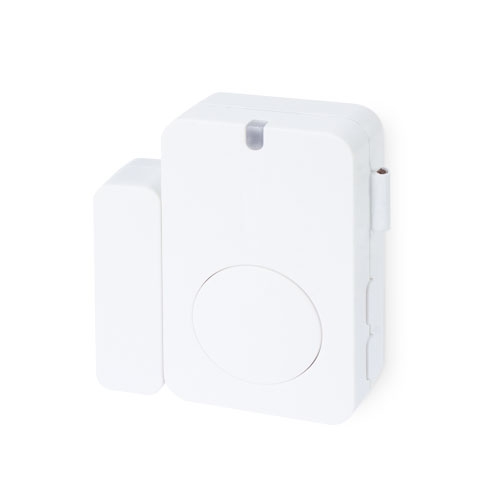

Planet IP30 LoRaWAN Door and Window Sensor Model LS100-DW-EU868

Planet IP30 LoRaWAN Door and Window Sensor Model LS100-DW-EU868

https://www.landextech.com/web/image/product.template/91/image_1920?unique=b3ce919

IP30 LoRaWAN Door and Window Sensor (EU868 Sub 1G, 2 x 3.0V CR2450 batteries required)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
PLANET TECHNOLOGY

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

Build a Smart IoT Environment with Fabulous LoRaWAN sensor

PLANET LS100-DW IP30 LoRaWAN Indoor Occupancy Sensor, which offers an elegant solution for real-time monitoring of building entrances. Apart from enhanced security measures, it contributes to energy management by providing data support. Through LoRaWAN connectivity, this sensor delivers real-time status updates on doors and windows, improving energy efficiency and access control.


    • Door and Window contact Sensor
    • IP30 rating
    • LoRaWAN™ Class A compatible



Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS100-DW -EU868
863–870 MHz

LS100-DW -US915
902–928 MHz
TX PowerLS100-DW -EU868
EU868 16dbm
IN865 20dbm (optional)

LS100-DW -US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.0V CR2450 button battery (Battery not included)
Operating VoltageDC 2.4V～3V
Battery Life Time3 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current12uA
Wake-up Current (Typical value)120mA/11mA
Low Battery Threshold2.4V
Physical Characteristics
Dimensions(L x W x H)57 x 38.05 x 15.2 mm
42.5 x 13 x 12 mm (Magnet)
Weight43.8g
Ingress ProtectionIP30
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non-condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceFCC PART 15B
