  2. Planet IP30 LoRaWAN Indoor Occupancy Sensor Model LS100-PIR-EU868

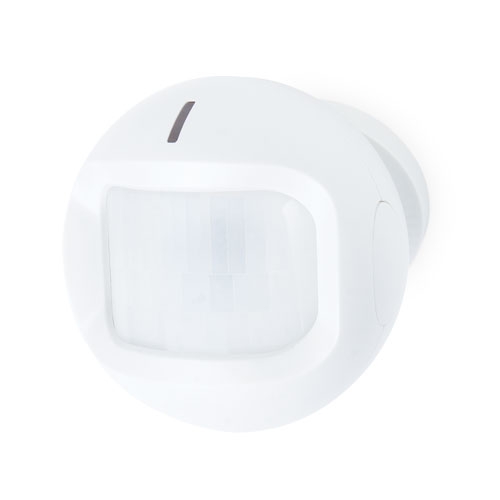

Planet IP30 LoRaWAN Indoor Occupancy Sensor Model LS100-PIR-EU868

https://www.landextech.com/web/image/product.template/92/image_1920?unique=35c9821
(0 review)

IP30 LoRaWAN Indoor Occupancy Sensor (Occupancy/Light/Temperature -20~55 degrees C, EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Available for Backorder

This combination does not exist.

Contact Us
PLANET

Terms and Conditions
Standard Manufacture Warranty.
Shipping: 1-2 Business Days For Available Items.
10-14 Business Days For Not Stock Items.

Build a Smart IoT Environment with Fabulous LoRaWAN sensor

PLANET LS100-PIR IP30 LoRaWAN Indoor Occupancy Sensor, which offers wide applications in smart building management, provides real-time information on indoor space occupancy. This assists in adjusting lighting and HVAC systems, achieving energy savings, and enhancing user experiences. Additionally, it can be utilized in security systems, offering critical intrusion detection features, thereby strengthening the overall building security.

  • Indoor Occupancy Sensor
  • Ligh sensor
  • Temperature sensor
  • IP30 rating
  • LoRaWAN Class A compatible



Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS100-PIR -EU868
863–870 MHz

LS100-PIR -US915
902–928 MHz
TX PowerLS100-PIR -EU868
EU868 16dbm
IN865 20dbm (optional)

LS100-PIR -US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating VoltageDC 3.1V～3.65V
Battery Life Time5 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current110uA
Wake-up Current (Typical value)9.78mA
Low Battery Threshold3.2V
Physical Characteristics
Dimension (L x W x H)78 x 78.8 x 82.2 mm
Weight125.8g
Ingress ProtectionIP30
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non-condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceFCC PART 15B

Catalogue page EN
