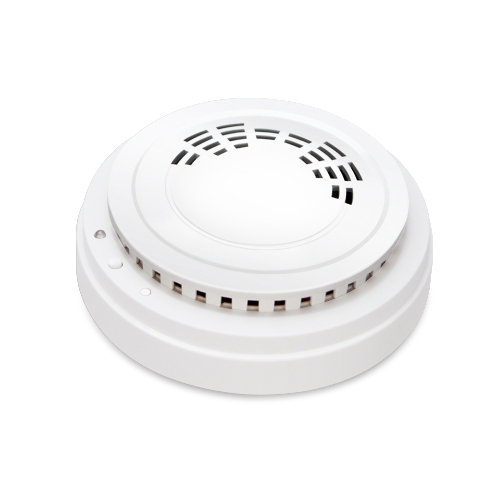

Planet IP20 LoRaWAN Smoke Detector (High-Temperature Alarm, EU868 Sub 1G)Model LS100-SMK-868M

https://www.landextech.com/web/image/product.template/93/image_1920?unique=5b7bf96
(0 review)

IP20 LoRaWAN Smoke Detector (High-Temperature Alarm, EU868 Sub 1G)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
PLANET TECHNOLOGY

Terms and Conditions
- Standard Manufacture Warranty.
-  Shipping for in-stock items: 1–2 business days.
- Delivery for out-of-stock items: 5–7 business days from payment confirmation.

Share

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

PLANET LS100-SMK IP20 LoRaWAN Smoke Detector is a crucial addition to any safety and security system, designed to detect smoke and high temperatures, providing early warnings to prevent potential fire hazards. Its smoke detection capability ensures rapid identification of smoke particles, crucial for early fire detection. Additionally, the high-temperature alarm activates when temperatures exceed 60°C, signaling potential overheating or fire. Equipped with an alarming bell, the LS-SMK promptly alerts occupants to take necessary action, enhancing safety measures in residential, commercial, and industrial environments. This multi-functional sensor ensures comprehensive fire safety, reducing risks and enhancing peace of mind.

  • Smoke Detection
  • High Temperature Alarm (>60°C)
  • Alarming Bell
  • LoRaWAN™ Class A compatible



Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS100-SMK-EU868
863–870 MHz

LS100-SMK-US915
902–928 MHz
TX PowerLS100-SMK-EU868
EU868 16dbm
IN865 20dbm (optional)

LS100-SMK-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2 x1.5V AAA alkaline batteries
(Battery not included)
Operating Voltage2.3V – 3.3V
Battery Life Time4.7 years
(25°C, 60-minutes reports, TX power = 20dBm, SF10)
Standby Current12uA
Wake-up Current (Typical value)580mA
Low Battery Threshold2.4V
Physical Characteristics
DimensionsØ106 x 40.6 mm
Weight105 g
Ingress ProtectionIP20
Sensor MeasurementsSmoke Detection
High Temperature Alarm (>60°C)
Alarming Bell:
　-85dBm @ 3 meter
Operating Temperature-10°C to 55°C
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B

Catalogue page EN
