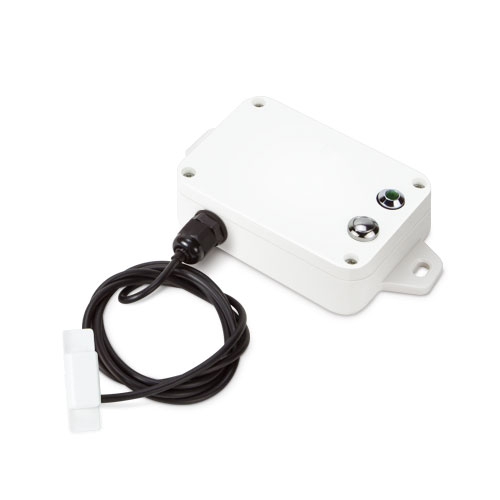

Planet IP65 LoRaWAN Water Leak Sensor Model LS100-WL-EU868

Planet IP65 LoRaWAN Water Leak Sensor Model LS100-WL-EU868

https://www.landextech.com/web/image/product.template/94/image_1920?unique=5b7bf96
(0 review)

IP65 LoRaWAN Water Leak Sensor (EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
PLANET TECHNOLOGY

Terms and Conditions
- Standard Manufacture Warranty.
-  Shipping for in-stock items: 1–2 business days.
- Delivery for out-of-stock items: 5–7 business days from payment confirmation.

Share

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

PLANET LS100-WL IP65 LoRaWAN Water Leak Sensor, which is a crucial water monitoring device applicable to residential, commercial, and industrial environments. With its high waterproof rating (IP65), it ensures reliable operation in various conditions, promptly detecting water leaks in plumbing systems. This aids in preventing potential water damage, reducing wastage, and enhancing maintenance efficiency, while promoting sustainable water resource management.


    • Water Leak Sensor
    • IP65 rating
    • LoRaWAN™ Class A compatible



Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS100-WL-EU868
　863–870 MHz

LS100-WL-US915
　902–928 MHz
TX PowerLS100-WL-EU868
　EU868 16dbm
　IN865 20dbm (optional)

LS100-WL-US915
　US915 20dbm
　AS923 16dbm (optional)
　AU915 20dbm (optional)
　KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.6V ER14505 AA battery in parallel　(Battery not included)
Operating VoltageDC 3.1V～3.65V
Battery Life Time5 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current22uA
Wake-up Current (Typical value)7.12mA
Low Battery Threshold3.2V
Physical Characteristics
Dimensions(L x W x H)112 x 88.2 x 32 mm
Weight141 g
Sensor Dimensions(L x W x H)38.5 x 11.89 x 13.7mm
Ingress ProtectionIP65
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B
