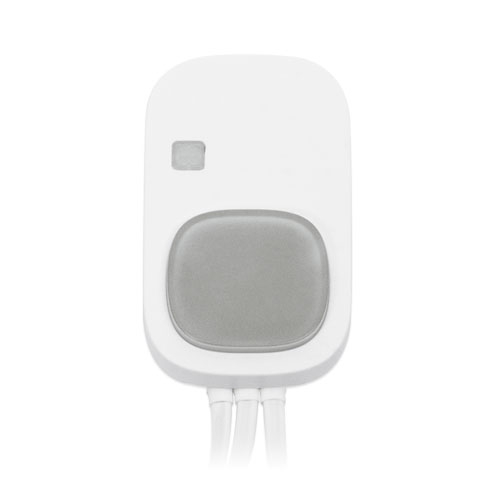

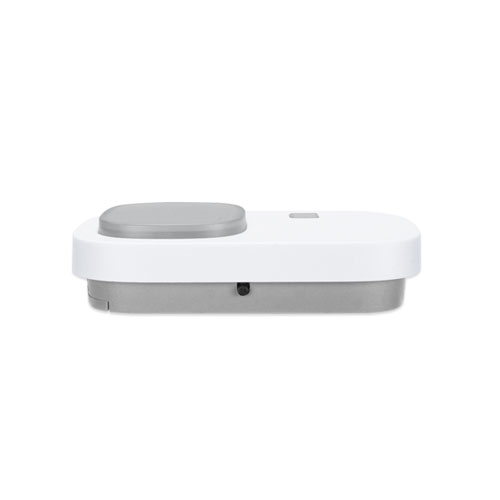

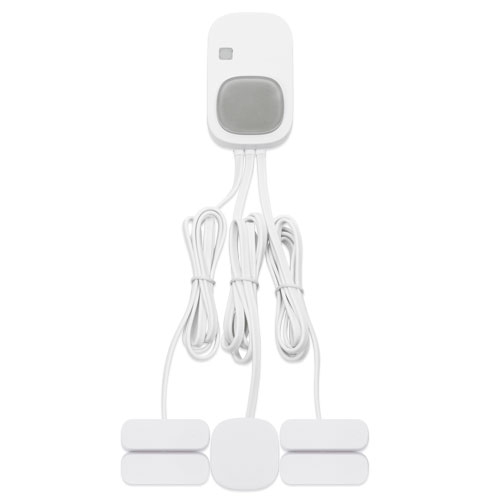

Planet IP30 LoRaWAN Multi-functional Sensor Model LS200-MK8-EU868

https://www.landextech.com/web/image/product.template/97/image_1920?unique=b3ce919
(0 review)

IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor (-20~55 degrees C, EU868 Sub 1G)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

This combination does not exist.

Contact Us
PLANET TECHNOLOGY

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

PLANET LS200-MF8 IP30 LoRaWAN Multi-functional Sensor supports the EU868 and US915 frequency bands, both of which fall within the sub-1 GHz range. It is designed to enhance the functionality and security of various environments through its comprehensive monitoring capabilities. Ideal for smart homes or long-term care, it maintains optimal indoor climate by monitoring temperature and humidity levels, ensuring comfort and energy efficiency.

  • Its passive infrared sensor is essential for security systems, detecting any movement.
  • The light sensor optimizes indoor lighting conditions, reducing energy consumption.
  • Tilt and vibration sensors are crucial in long-term care settings, monitoring machinery performance and structural integrity to prevent potential failures.
  • The reed switch effectively monitors door and window status, while the glass break sensor adds an extra layer of protection by detecting glass breakage.

This multi-functional sensor ensures comprehensive monitoring, improved automation, and heightened security, making it indispensable for modern smart environments.

IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor (-20~55 degrees C, EU868 Sub 1G)


      • Indoor Temperature and Humidity Sensor (-20~55 degrees C)
      • PIR Sensor (3m to 5m)
      • Light Sensor (1 Lux to 3000 Lux)
      • Tilt Sensor (Conversion Angle: 45±5 degrees)
      • Vibration Sensor
      • Reed Switch Sensor
      • Glass Break Sensor (Detection Mode: Piezoelectric buzzer)
      • LoRaWAN™ Class A compatible



Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS200-MK8-EU868
863–870 MHz

LS200-MF8-US915
902–928 MHz
TX PowerLS200-MK8-EU868
EU868 16dbm
IN865 20dbm (optional)

LS200-MF8-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.0V CR2450 button battery
(Battery not included)
Operating VoltageDC 2.3 ~ 3V
Battery Life Time2.26 years
(Conditions: ambient temperature 25 °C, 15 min report once, TX power = 20dBm, LoRa spreading factor SF = 10)
Low Battery Threshold3.2V
Physical Characteristics
Dimensions (L x W x H)75.5 x 19.4 x 44 mm
Weight120 g
Sensor DimensionsReed Switch: 46 x 16 x 12.9mm
Glass Break Sensor: 36 x 36 x 7.9mm
Ingress ProtectionIP30
Reed switch - IP67
glass break - IP40
Sensor MeasurementsTemperature Sensor Information
　Measurement Range: -20°C to 55°C
　Measurement Accuracy: ±1°C

Humidity Sensor Information
　Measurement Range: 0% RH to 100% RH
　Measurement Accuracy: ±7%RH

Passive Infrared Sensor Information
　Detectable Angle: 80° horizontally / 55° vertically
　Detectable Range: 3m to 5m

Light Sensor Information
　Illumination Measurement Range: 1 Lux to 3000 Lux
　Illumination Measurement Accuracy: <15%

Tilt Sensor Information
　Conversion Angle: 45±5 degrees
　Contact Resistance: Less than 10 ohms
　The Insulation Resistance: Greater than 100 megohms
　Operating Temperature: -40°C to 85 °C
　Installation Type: Suitable for PCB at vertical state

Vibration Sensor Information
　Model: Ball type omnidirectional signal trigger switch
　Voltage: <6V
　Current: 2uA to 10mA
　Insulation Resistance: >10M Ω
　Trigger Rate: 100% (amplitude > 1 mm, frequency > 20 Hz)
　Trigger Frequency: >50Hz

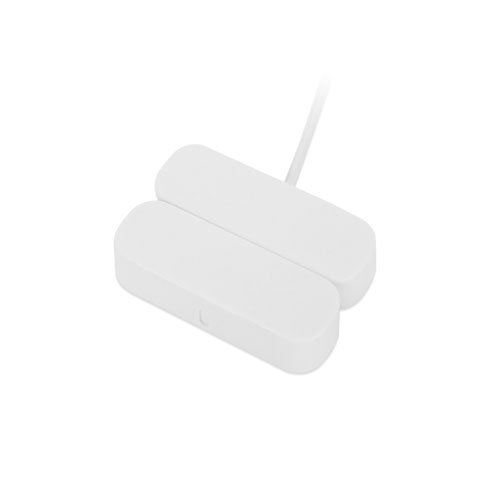

Reed Switch Sensor Information
　Minimum Insulation Resistance 10^10 Ω
　Maximum Contact Resistance 100m Ω
　Maximum Switching Current 0.5A

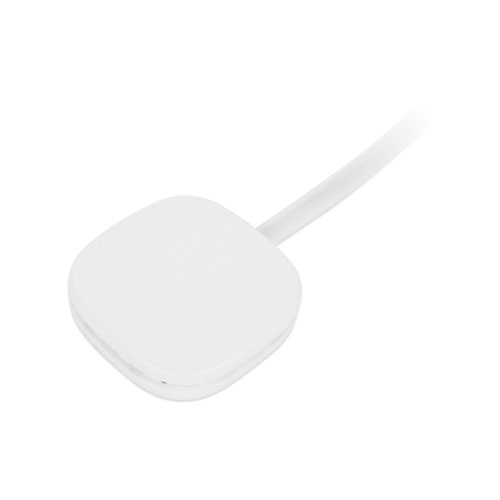

Glass Break Sensor Information
　Detection Mode: Piezoelectric buzzer
　Power Supply: Self-generated voltage chip
　Impedance: Normal (NC): 7Ω (max) Alarm (NO): 1MΩ (min)
　Sensor Sensing Range: within 2.5M radius
　Signal Sensing Time: 1-3 seconds
　Loop Voltage: 15VDC (max)
　Loop Current: 25mA (max)
　Operating Temperature: -10 to 50 °C
　Wire Length: 100cm
Operating Temperature-10°C to 50°C
Relative Humidity<90% RH (non-condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B

Catalogue page EN
