  2. Planet IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor Model LS200-RF-EU868

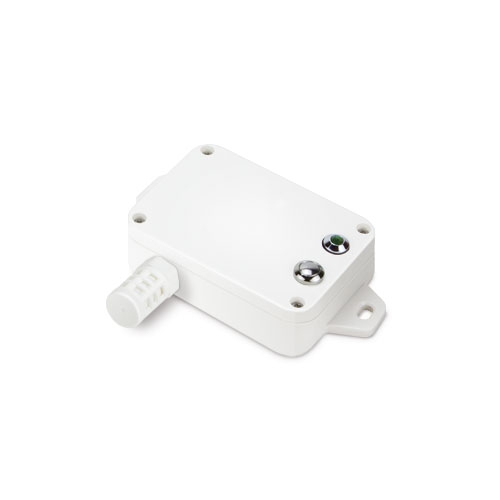

Planet IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor Model LS200-RF-EU868

https://www.landextech.com/web/image/product.template/99/image_1920?unique=bbe0421
(0 review)

IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor (-40~55 degrees C, EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Available for Backorder

This combination does not exist.

Contact Us
PLANET

Terms and Conditions
Standard Manufacture Warranty.
Shipping: 1-2 Business Days For Available Items.
10-14 Business Days For Not Stock Items.

LoRa Communication Solution

PLANET LoRaWAN LS100/LS200 series Sensor, fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supports the LoRaWAN class A. Beyond compatibility, it offers advanced features enhancing IoT applications. With reliable data transmission and low power consumption, it meets diverse IoT demands. In building automation, the sensor enables real-time monitoring and control, optimizing HVAC systems for energy efficiency. In agriculture, it aids precision farming by monitoring soil conditions and livestock well-being. For smart metering, it excels in accurate data acquisition, facilitating energy consumption monitoring and resource management. Its retrofitting capabilities seamlessly integrate various sensors, transforming the existing infrastructure into smart, connected systems. In summary, PLANET LoRaWAN Sensor enriches IoT applications with advanced features, ensuring compatibility and empowering industries for increased efficiency and sustainability in a concise manner.

IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor (-40~55 degrees C, EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)


  • Refrigerator Temperature and Humidity Sensor (-40~55 degrees C)
  • IP65 rating
  • LoRaWAN™ Class A compatible



Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS200-RF-EU868
863–870 MHz

LS200-RF-US915
902–928 MHz
TX PowerLS200-RF-EU868
EU868 16dbm
IN865 20dbm (optional)

LS200-RF-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating VoltageDC 3.1V～3.65V
Battery Life Time5 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current20uA
Wake-up Current (Typical value)7.11mA
Low Battery Threshold3.2V
Physical Characteristics
Dimensions (L x W x H)112 x 65 x 32 mm
Weight141 g
Sensor Measurement InfoTemperature Detecting Range: -40℃ ～55℃
Ingress ProtectionIP65
Operating Temperature-40℃ ～55℃
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B

Catalogue page EN
