  2. Planet IP65 LoRaWAN Machine Temperature Sensor Model LS200-TC-EU868

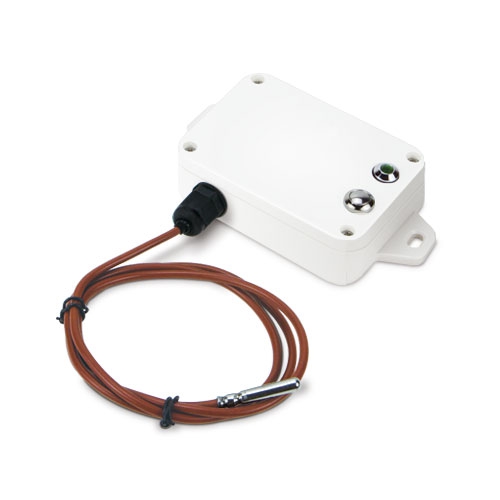

Planet IP65 LoRaWAN Machine Temperature Sensor Model LS200-TC-EU868

https://www.landextech.com/web/image/product.template/100/image_1920?unique=2923db8
(0 review)

IP65 LoRaWAN Machine Temperature Sensor (Thermocouple -40~125 degrees C, EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Available for Backorder

This combination does not exist.

Contact Us
PLANET

Terms and Conditions
Standard Manufacture Warranty.
Shipping: 1-2 Business Days For Available Items.
10-14 Business Days For Not Stock Items.

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

PLANET LS200-TC IP65 LoRaWAN Product Temperature Sensor, featuring a Thermocouple, excels in monitoring temperatures from -40 to 125 degrees Celsius in industrial environments. Housed in a robust IP65 enclosure, it ensures durability. Leveraging LoRaWAN technology for real-time temperature tracking, the sensor supports preventive maintenance, prolongs equipment life, and reduces downtime. The Thermocouple's capability enhances the sensor's adaptability to diverse industrial settings. With a focus on reliability and precision, this sensor proves crucial for optimizing industrial processes, ensuring equipment integrity, and streamlining operational efficiency.

IP65 LoRaWAN Machine Temperature Sensor (Thermocouple -40~125 degrees C, EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)


  • Machine Temperature Sensor with Thermocouple (-40~125 degrees C)
  • IP65 rating
  • LoRaWAN™ Class A compatible


Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS200-TC-EU868
863–870 MHz

LS200-TC-US915
902–928 MHz
TX PowerLS200-TC-EU868
EU868 16dbm
IN865 20dbm (optional)

LS200-TC-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating VoltageDC 3.1V～3.65V
Battery Life Time5 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current34uA
Wake-up Current (Typical value)7.33mA
Low Battery Threshold3.2V
Physical Characteristics
Dimensions (L x W x H)112 x 88.19 x 32 mm
Weight186 g
Probe InfoThermocouple Characteristic
Probe Temperature Detecting Range-40°C to 125℃
Probe Wire Length1m
Ingress ProtectionIP65
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B

Catalogue page EN
