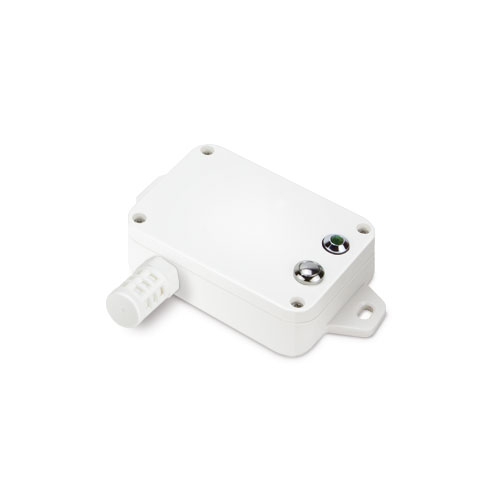

Planet IP65 LoRaWAN Indoor Temperature and Humidity Sensor Model LS200-TH-EU868

https://www.landextech.com/web/image/product.template/101/image_1920?unique=3eddccc
(0 review)

IP65 LoRaWAN Indoor Temperature and Humidity Sensor (-20~55 degrees C, EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Available for Backorder

This combination does not exist.

Contact Us
PLANET

Terms and Conditions
Standard Manufacture Warranty.
Shipping: 1-2 Business Days For Available Items.
10-14 Business Days For Not Stock Items.

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

PLANET LS200-TH IP65 LoRaWAN Indoor Temperature and Humidity Sensor, which comes with wide applications for agriculture, pharmaceuticals, and logistics, ensures compliance with specific environmental conditions. Its IP65 protection ensures reliable operation in harsh environments, while LoRaWAN connectivity provides real-time temperature and humidity data. This is instrumental in maintaining product quality, preventing losses, and enhancing overall efficiency.

IP65 LoRaWAN Indoor Temperature and Humidity Sensor (-20~55 degrees C, EU868 Sub 1G, 2 x 3.6V ER14505 AA batteries required)


  • Indoor Temperature and Humidity Sensor (-20~55 degrees C)
  • IP65 rating
  • LoRaWAN™ Class A compatible


Product Reference Site Link


Wireless Transmission
TechnologyLoRaWAN
FrequencyLS200-TH-EU868
863–870 MHz

LS200-TH-US915
902–928 MHz
TX PowerLS200-TH-EU868
EU868 16dbm
IN865 20dbm (optional)

LS200-TH-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating VoltageDC 3.1V～3.65V
Battery Life Time5 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current24uA
Wake-up Current (Typical value)6.99mA
Low Battery Threshold3.2V
Physical Characteristics
Dimensions (L x W x H)112 x 65 x 28 mm
Weight141 g
Sensor DimensionsD: Ø16mm*L: 27mm,
Ingress ProtectionIP65
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B

Catalogue page EN
