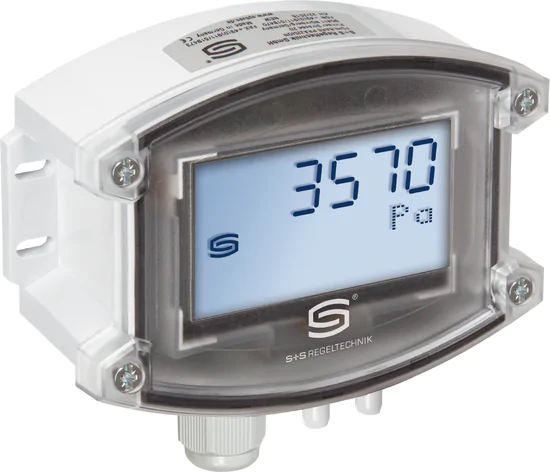

Pressure and differential pressure measuring transducer PREMASGARD 7112-U LCD

PRESSURE AND DIFFERENTIAL PRESSURE MEASURING TRANSDUCER PREMASGARD® 711X

The calibratable pressure sensors PREMASGARD® 711x (series) with eight switchable measuring ranges (eight devices in one), housing made from impact-resistant plastic, optionally with/ without display, with cable gland or M12 connector according to DIN EN 61076-2-101 and pressure connection nozzles (quick connect optional) are used to measure positive, negative or differential pressures in air. The piezoresistive measuring element is temperature-compensated and guarantees a high degree of reliability and accuracy.

Applications of these pressure sensors are in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths, in large-scale catering facilities, for filter monitoring and level measurement or for triggering frequency converters. Media measured with these pressure transducers are air (non-precipitating), or other gaseous, non-aggressive, non-combustible media. The pressure sensor has a button for manual zero point calibration (automatic zero point calibration optional/standard for 25 Pa) and an offset potentiometer for final value correction. The sensor is factory-calibrated; an environmental precision adjustment by an expert is possible. The delivery includes the connection set ASD-06 (2 m connection hose, two pressure port nipples, screws).
