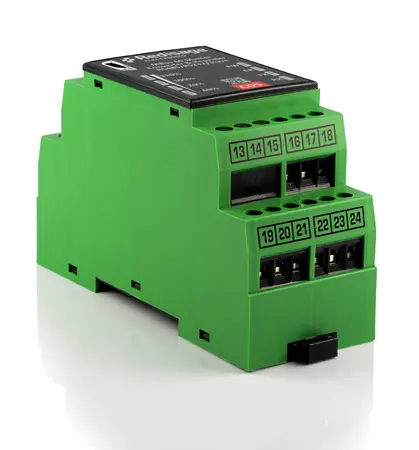

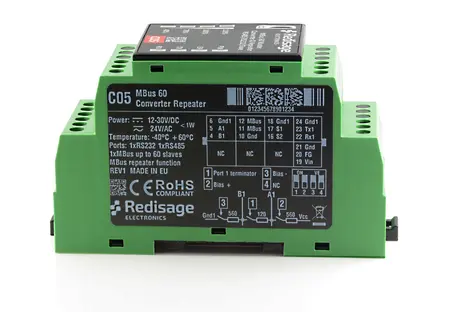

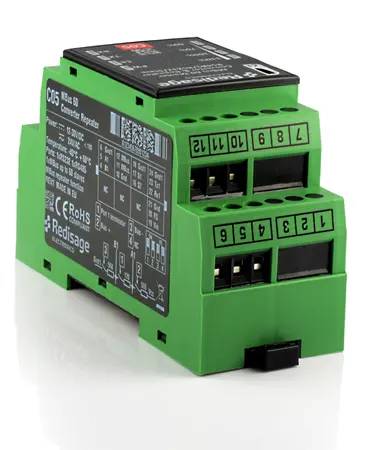

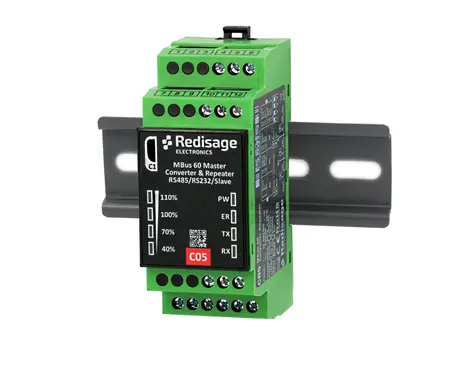

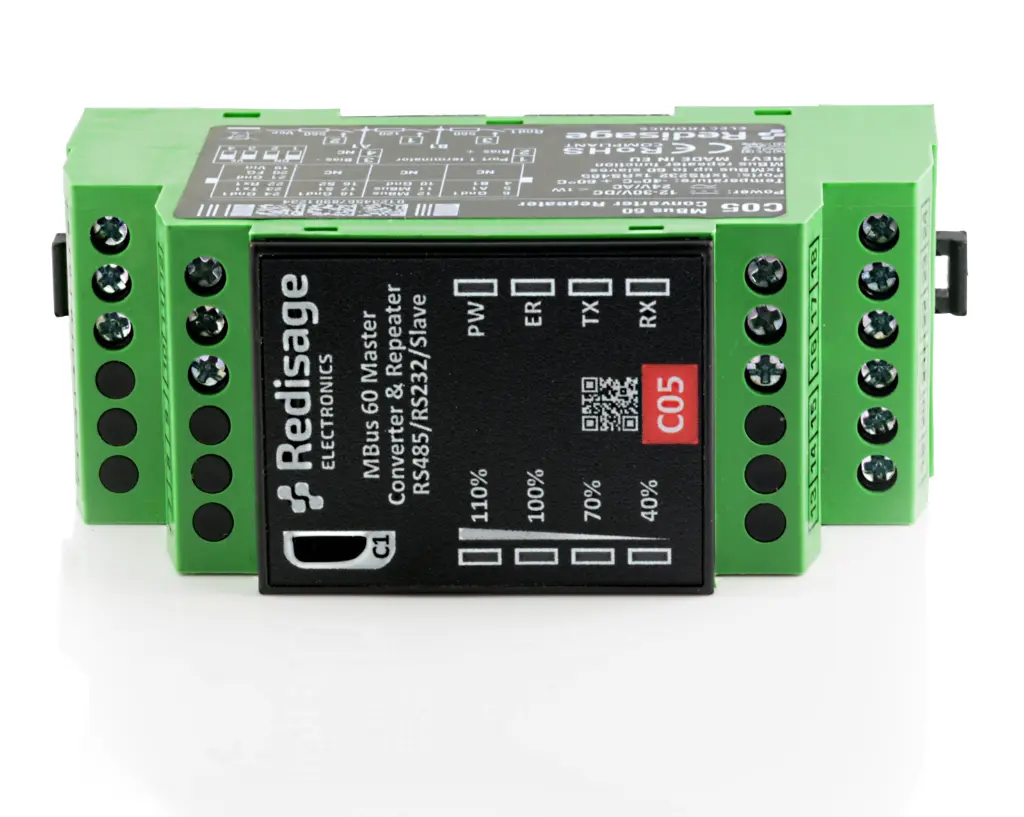

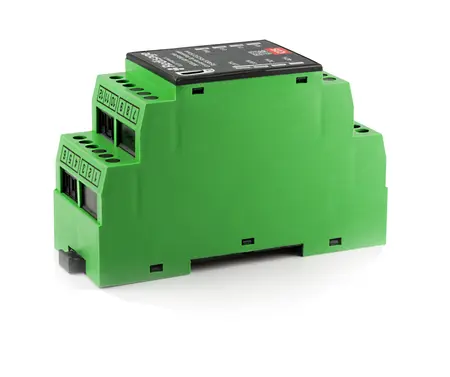

C05 M-Bus to RS232/RS485/Slave Converter – 1kV DC Isolation for Optimal Industrial Communication
Standout Features
Serial Interfaces: Equipped with both RS232 and RS485, granting you an all-in-one versatile solution to fit connectivity needs.
High Isolation Protection: Provided 1kV DC isolation on RS232, RS485, and M-Bus slave interfaces to safeguard against electrical surges.
ESD Protection: Integrated ±4 kV contact discharge and ±8 kV air discharge protection for enhanced device longevity.
Transmission Speed: Up to 9600 bps.
LED Indicators: TX, RX, power, and M-Bus load status for better real-time monitoring and diagnostics.
RS485 Termination: Includes a manually enabled 120-ohm termination resistor to maintain signal integrity over long distances.
Compliance: Meets CE and RoHS standards, ensuring quality and environmental compliance.
Ideal Applications
Our versatile C05 converter performs exceptionally well as a key component in the integration of M-Bus networks with serial communication systems, especially in industrial automation, building management, and utility monitoring. Thanks to its many useful features, it fits particularly well into virtually every context and environment, including harsh industrial settings where reliable and secure data transmission is critical.
The true value of Redisage’s C05 M-Bus to RS232/RS485 converter stems from its reliability. As an electronics manufacturer, we’re renowned for our technical expertise and unrelenting commitment to ensuring product quality. Shop now and see just how seamless the data flow in your complex network can be!
- Serial ports RS232 and RS485
- Up to 400 simultaneously connected slave devices
- ESD protection for the RS232/485 data line
- 3000 VDC isolation protection
- Power supply: +12 to +30 VDC or 24 VAC
- Transmission speed up to 9600 bps
- Tx, Rx, power and M-Bus load LED indicators
- RS485 embedded termination 120 ohm
- Operating temperatures: -40°C to +60°C
- DIN-rail mounting
- Dimensions: 90x56.4x35,6 mm
- 3 years warranty
- Customization of OEM is welcomed
