C11 RS232 to RS485 Converter 3kV DC Isolation on RS232 SIde

https://www.landextech.com/web/image/product.template/184/image_1920?unique=d08b7b6

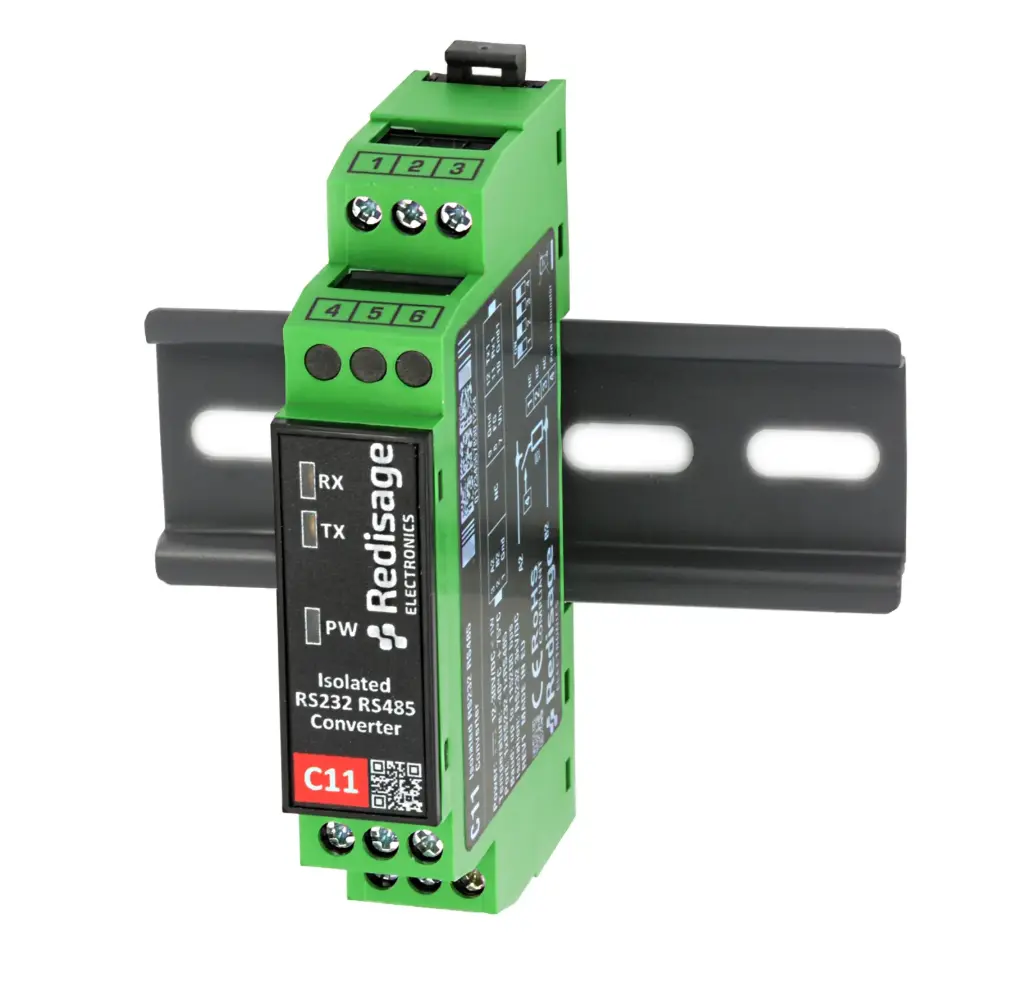

Redisage Electronics Isolated RS232 to RS485 Converter - RS232 Side Isolated 3kV DC Model C11

  • RS232 3 kV/DC
  • 1x RS232 , 1x RS485
  • Power Voltage 12-30 V/DC
Item no. RE-C11
Made In Europe

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

  • Port Type
  • Number Of Ports
  • Brand Names

This combination does not exist.

Price (AED)
Redisage Electronics

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

Many industrial systems provide communication through RS232 serial ports. However, this standard has limited capabilities, so RS485 is increasingly used. The C11 converter is an excellent product that makes it easy to build an industrial environment without changing existing hardware or software solutions. It is a secure RS232-to-RS485 converter featuring a supply voltage of 12–30 VDC or 24 VAC, ESD protection for the data bus, 3000 VDC RS232-sided isolation, informative LED indicators, and a transmission speed of up to 115200 bps.


Features


  • Automatic RS485 direction control
  • ESD protection for the RS232/485 data line
  • Power supply: +12 to +30 VDC or 24 VAC
  • 3000 VDC isolation protection on the RS-485 side
  • Transmission speed up to 115200 bps
  • Tx, Rx and power LED indicators
  • RS485 embedded termination 120 ohm
  • Operating temperatures: -40°C to +75°C
  • DIN-rail mounting
  • Compact size - single module format (1M)
  • Dimensions: 90x56.4x17.5 mm
  • 3 years warranty
  • Customization of OEM is welcomed

Product Reference Site Link

Redisage PN
 C10 C11 C12 C13
Frame ground protection
 yes

Serial interface
 RS232 TxD, Rx, GND

RS485 A, B

3000 VDC isolation

 3-way on RS232 side on RS485 side N/A
Baud rate
 up to 115200 bps

LED indicators
 communication Tx, Rx and power

RS485 termination
 120 ohm manually enabled

Connector
 RS232 3-pin terminal block max. 2.5 mm2 wire

RS485 3-pin terminal block max. 2.5 mm2 wire

Power 3-pin terminal block max. 2.5 mm2 wire

Transmission distance
 RS485 max. 1,200 m at 9.6 kbps; max. 400 m at 115.2 kbps
(Belden 9841 2P twisted-pair cable, if different cables are used,
the transmission distance may change)

RS232 max. 15 m at 115.2 kbps

Mounting and enclosure
 DIN rail, plastic PA - UL 94 V0, black/green

Temperatures -40°C to +75°C operating and storage

Humidity 10 - 90% RH, non-condensing

ESD protection

±4 kV contact discharge / ±8 kV air discharge

Certification

CE, RoHS, EMC, LVD

Norms

61000-6-2 - Immunity standard for industrial environments

61000-6-4 - Emission standard for industrial environments

Catalogue page EN

Specifications

Industrial Communication Products
Port Type RS232, RS485
Others
Brand Names Redisage Electronics
