Need stability and reliability in your RS485 network? The H01 three-way RS485 Hub can get the job done easily thanks to its 1-to-3 signal distribution, which makes it incredibly efficient at expanding communication lines while maintaining full data integrity. The 3kV isolation provides robust protection against electrical surges, safeguarding whatever devices are plugged in between the input and output.
Our hub supports automatic RS485 direction control, eliminating the need for manual configuration. Additionally, built-in ESD protection means electrostatic discharges won’t cause problems or threaten network stability. Your devices will also enjoy higher longevity, which is a must in demanding technical environments.
Technical Specifications of Three-way RS485 isolated HUB:
- Three-way 3kV isolation
- 1-to-3 RS485 signal distribution
- Automatic RS485 direction control
- ESD protection for enhanced durability
- Power supply: +12 to +30 V/DC or 24 V/AC
- Baud rate: up to 115.2 kbps
Features
- Isolated RS485 1:3 HUB
- ESD protection for the RS485 data line
- Power supply: +12 to +30 VDC or 24 VAC
- 3000 VDC isolation protection
- Transmission speed up to 115200 bps

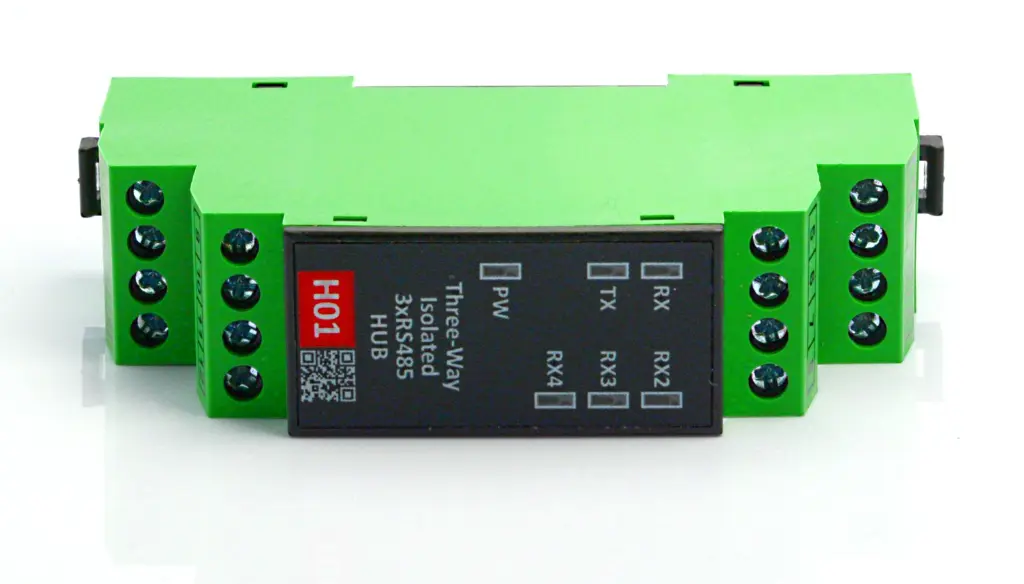

- Tx, Rx and power LED indicators
- RS485 embedded termination 120 ohm
- Operating temperatures: -40°C to +75°C

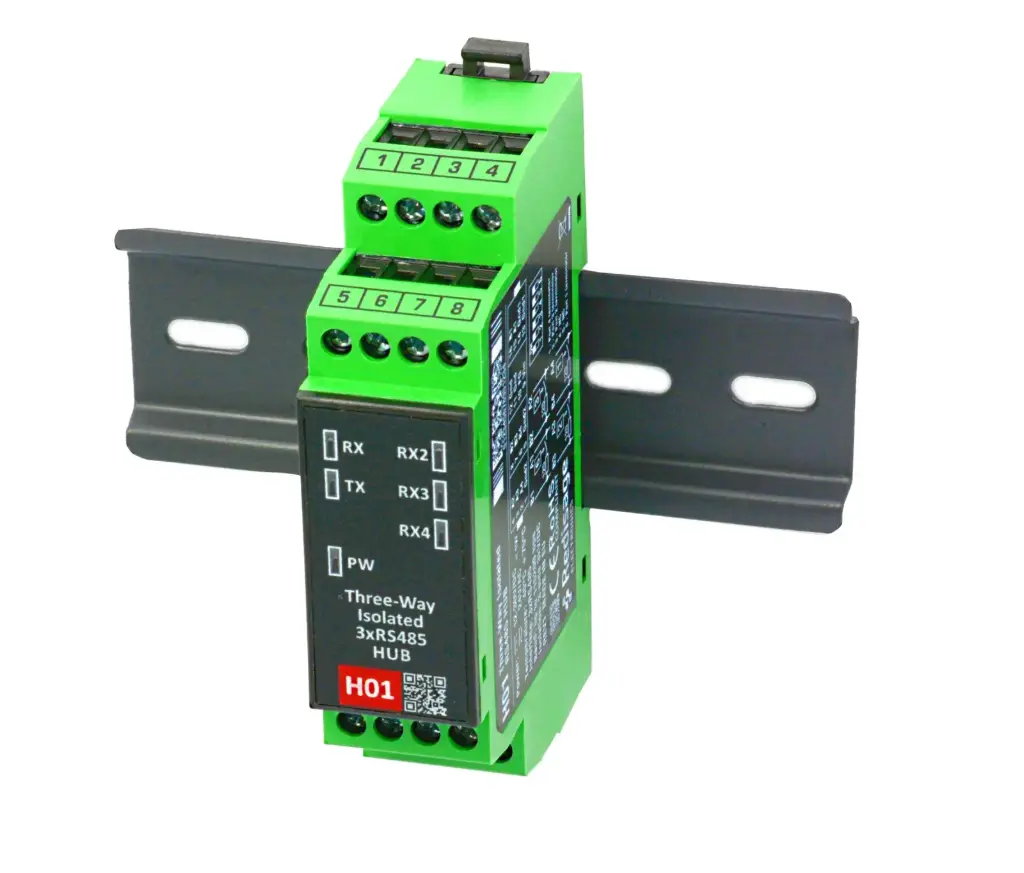

- DIN-rail mounting
- Compact size - single module format (1M)
- Dimensions: 90x56.4x17.5 mm
- 3 years warranty
- Customization of OEM is welcomed
