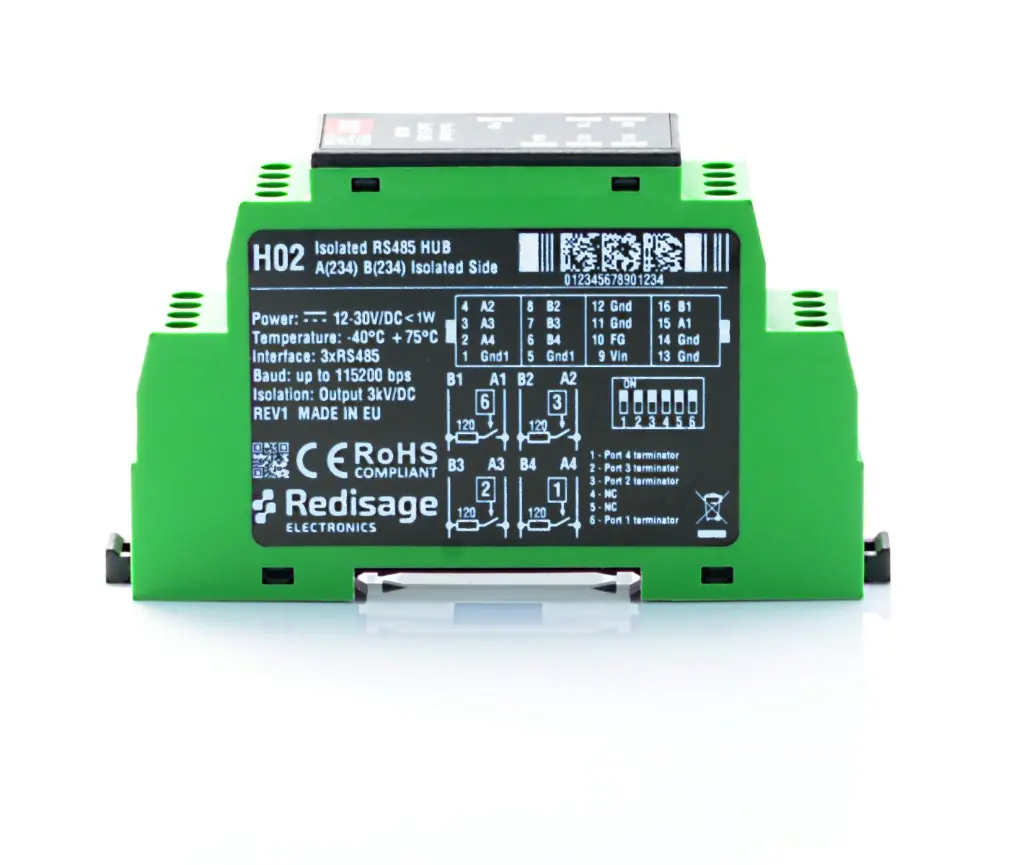

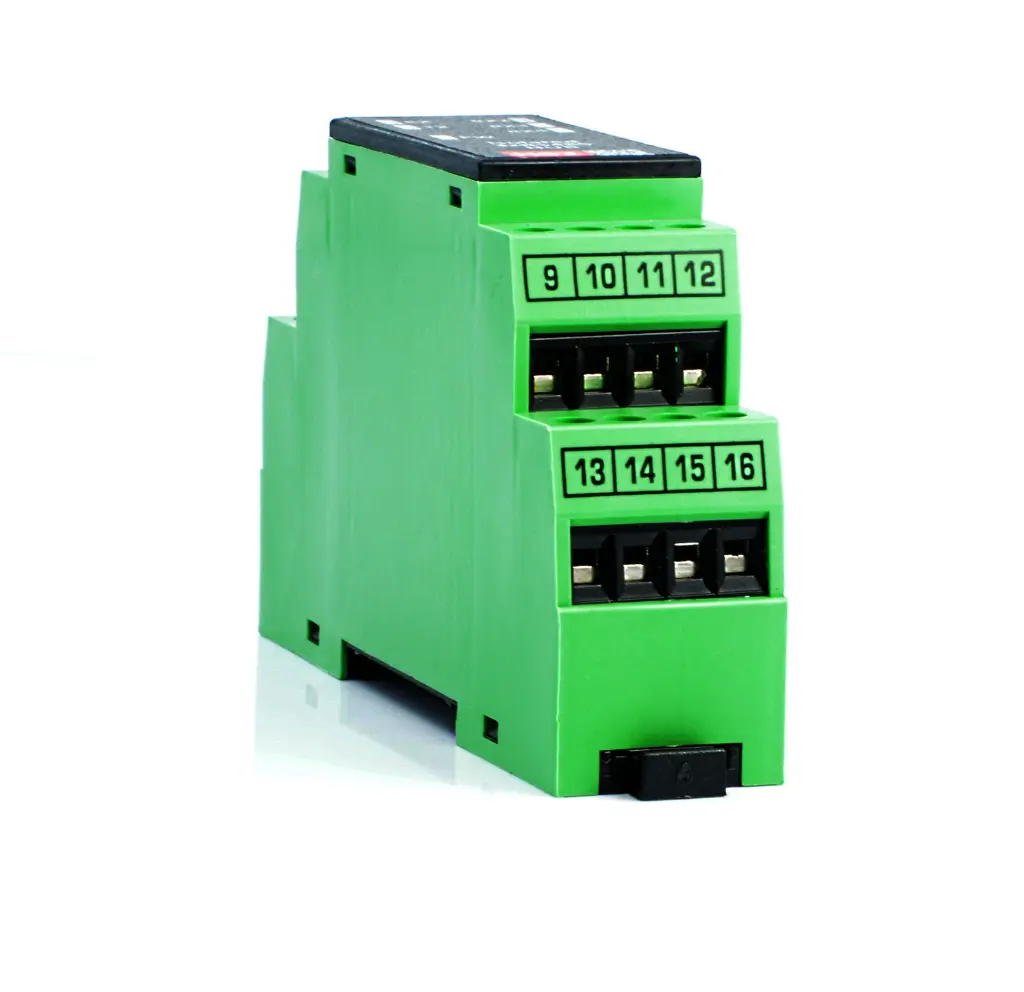

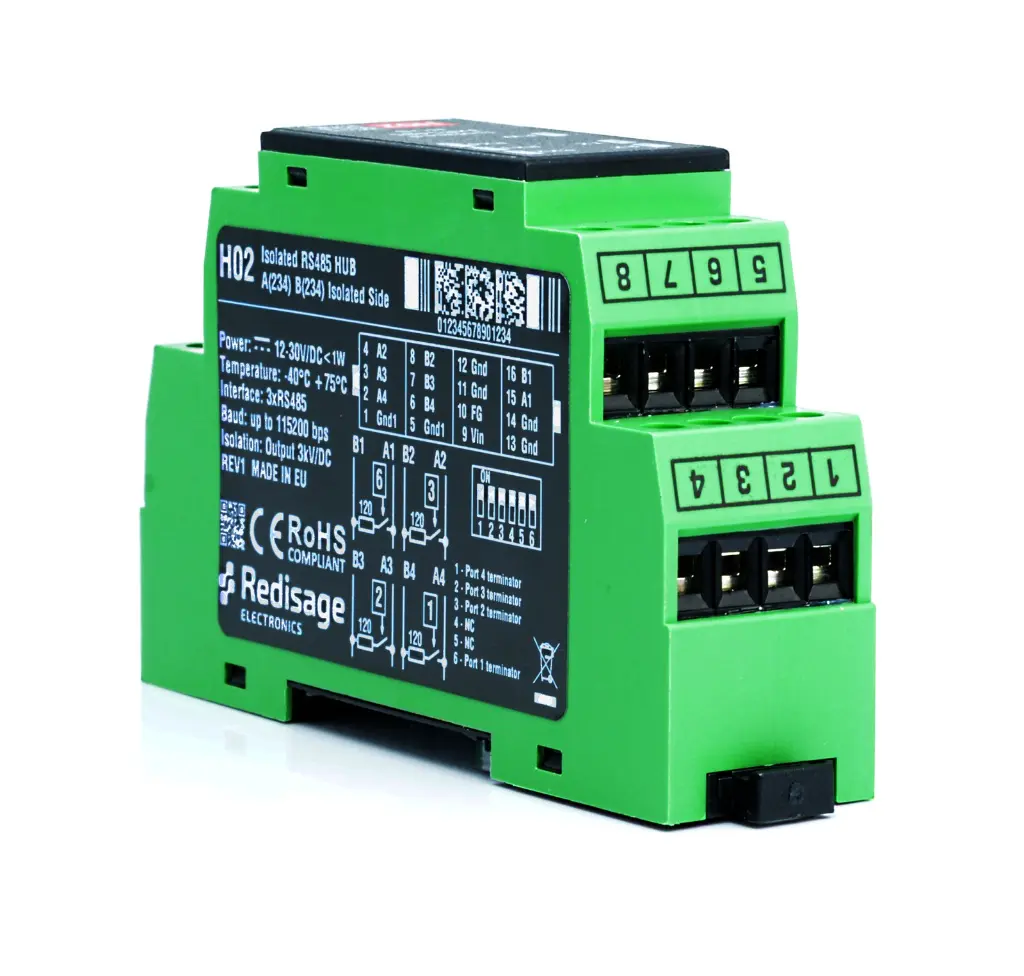

H02 Isolated RS485 HUB 1:3 3kV DC Isolation Side (3)

https://www.landextech.com/web/image/product.template/203/image_1920?unique=b523b0f

Isolated RS485 1:3 HUB Branched Side (3) Isolated 3kV DC Isolation

  • Slave RS485 3 kV/DC
  • 4x RS485
  • Power Voltage 12-30 V/DC
Item no. RE-H02
Made In Europe

0.00 AED 0.0 AED 0.00 AED 5% Tax Excluded ​​

0.00 AED 5% Tax Excluded ​​

Call Now !

  • Port Type
  • Number Of Ports

This combination does not exist.

Contact Us
Redisage Electronics

Terms and Conditions
- Standard Manufacture Warranty.
- Rate exclusive of (5%) UAE VAT.
- Delivery lead time: 1 - 2 days business days.
- Free UAE Shipping (Terms & Conditions apply).

Share

Redisage's H02 is a reliable RS485 signal HUB made to work with variable transmission speeds up to 115200 bps. It allows flexible branching of the 1:3 interface while simultaneously protecting the attached devices with a 3 kVDC branched side isolation. Additionally, a dedicated EMC protection circuit improves transmission quality in an industrial environment. H02 is powered with 12-30 VDC or 24 VAC and ensures low power consumption of less than 1W.


Features


  •     Isolated RS485 1:3 HUB
  •     ESD protection for the RS485 data line
  •     Power supply: +12 to +30 VDC or 24 VAC
  •     3000 VDC isolation protection
  •     Transmission speed up to 115200 bps

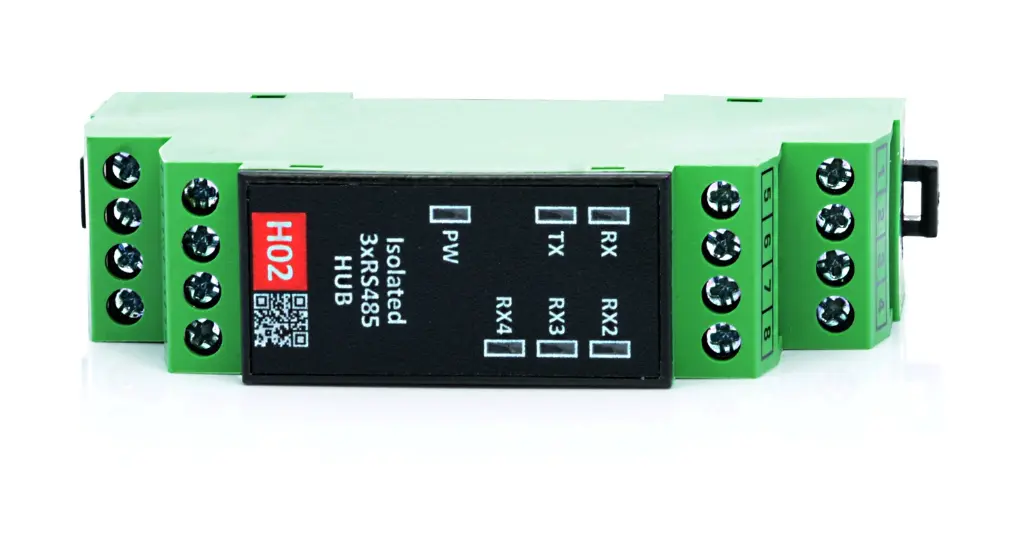

  •     Tx, Rx and power LED indicators
  •     RS485 embedded termination 120 ohm
  •     Operating temperatures: -40°C to +75°C

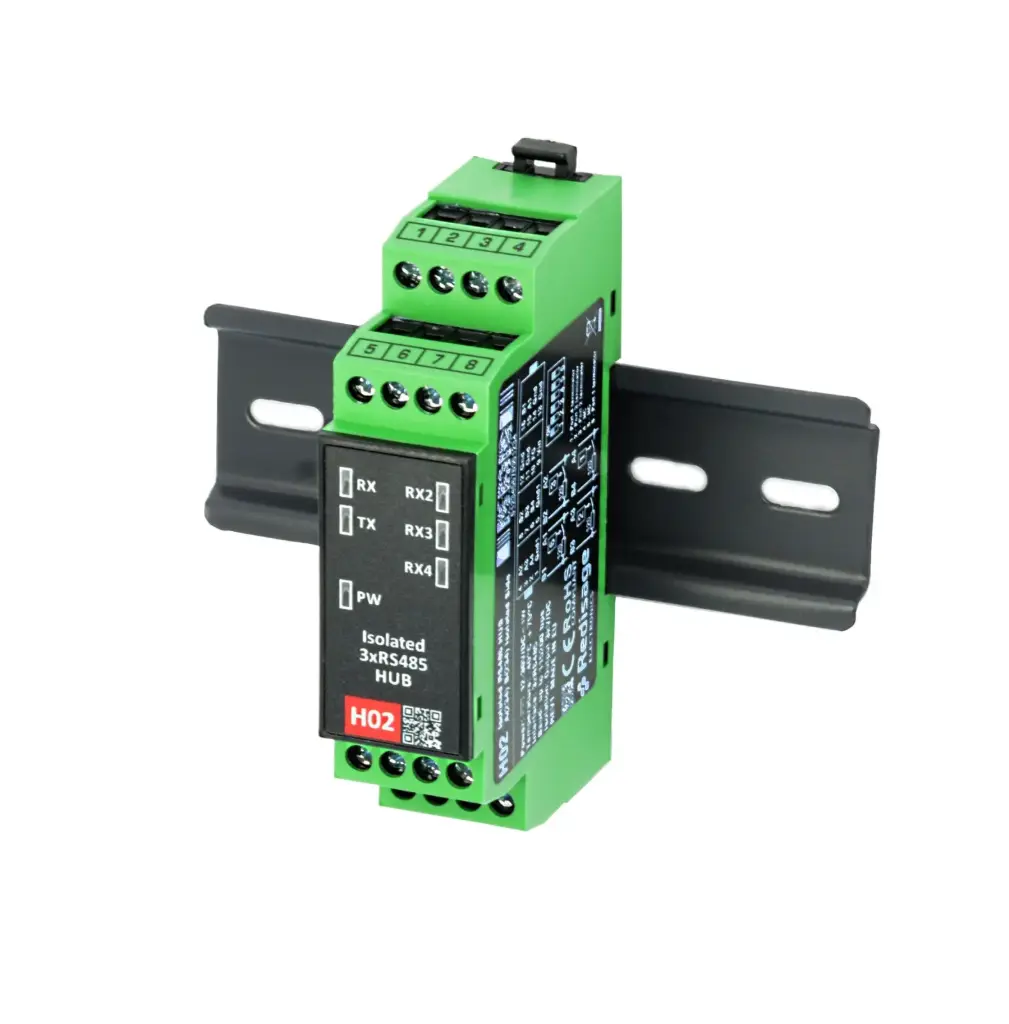

  •     DIN-rail mounting
  •     Compact size - single module format (1M)
  •     Dimensions: 90x56.4x17.5 mm
  •     3 years warranty
  •     Customization of OEM is welcomed



Product Reference Site Link

Catalogue page EN

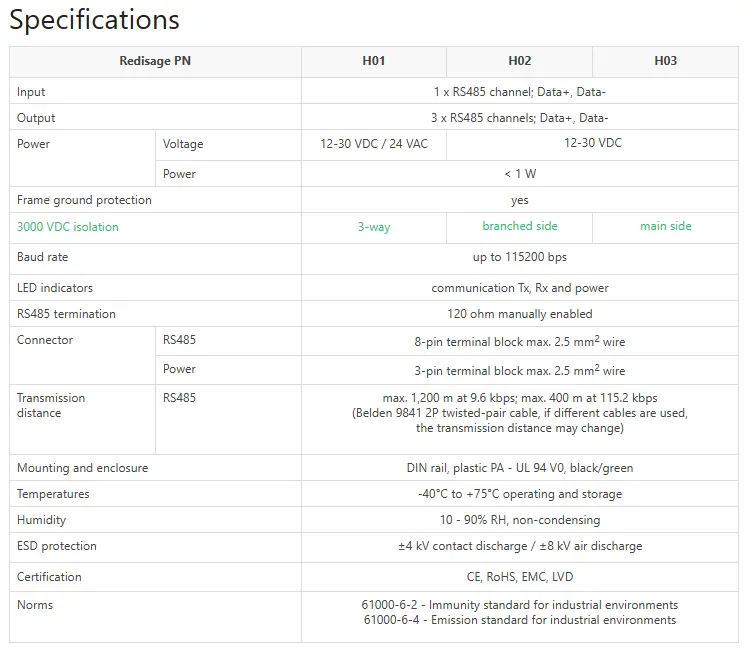

Specifications
