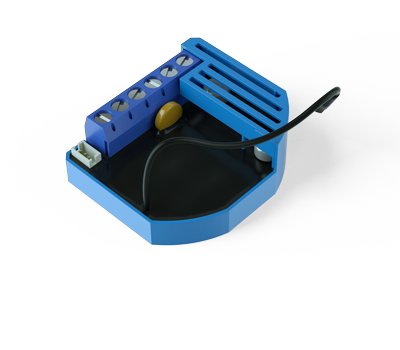

Qubino Z-Wave Flush Dimmer
Qubino Z-Wave Flush Dimmer
This module is used for dimming the light or to manage the speed of a fan. The module can be controlled either through a Z-Wave network or through the wall switch. The module is designed to be mounted inside a “flush mounting box” and is hidden behind a traditional wall switch.
The first (MOSFET switching) dimming module in the world which also supports control of:
• low voltage halogen lamps with electronic transformer,
• dimmable compact fluorescent light.
The smallest dimming module in the world.
Special designed casing ensure the most simplified installation (ease of cabling fixing) inside a flush mounting box.
PROVED and TESTED BY PROFESSIONAL ELECTRICIANS! Extremely low energy consumption: less than 0.7 W.
Extended operating temperatures: (-10 to 40) ˚C.
Support for the connection of digital temperature sensor. Power consumption measurement.
2 binary inputs offer the option to connect additional devices such as sensors, switches/push buttons, etc.
Z-Wave operation range up to 30 m indoors (98 ft)
ZMNHSD1/ 50 Hz/ 868,4 MHz (EU, China, UAE, Kuwait, Jordan, Lebanon)
