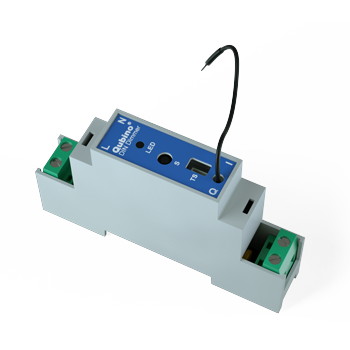

Qubino Z-Wave DIN Dimmer

Qubino Z-Wave DIN Dimmer
• (MOSFET switching) dimming device in the world which also supports control of: low voltage halogen lamps with electronic transformer, dimmable compact fluorescent light.
• Dimming loads: (1 to 200) W
• Easy installation The device is designed to be mounted inside an electrical cabinet onto DIN rail.
• Extremely low energy consumption: less than 0.7 W.
• Extended operating temperatures: (-10 to 40) ˚C.
• Support for the connection of digital temperature sensor.
• Power consumption measurement integrated
Power supply 110 - 240 VAC ±10% 50/60Hz*, (24-30VDC)
Rated load current of AC/DC output (resistive load) 0,85A / 240VAC 0,85A / 30VDC
Output circuit power of AC/DC output (resistive load)
Power measurement accuracy +/-2W
Z-Wave operation range up to 30 m indoors (98 ft)
ZMNHSD1/ 50 Hz/ 868,4 MHz (EU, China, UAE, Kuwait, Jordan, Lebanon)
